SMB 32 Sim Bank Sim Remote Management Sim Box&Sim Bank With Auto Imei Change

Specifications

SMB 32 sim bank sim remote managementsim box∼ bank

Product Overview

SMB32 is an integrated controller for 32-way remote SIM card. It can convert the communication between the SIM card and the SIM connecting device to realize the remote separation of card and equipment. SMB32 can control 32 SIM cards at the same time and offers such functions as hot plugging, quick online SIM exchange and timed exchange planning. The use of SMB32 and the corresponding device can realize the comprehensive management of the unattended devices and reduce the workload for SIM operation, such as SIM card replacement and account recharge.

Advantages of Remote SIM

Remote and Centralized Management of SIM cards

Dynamic allocation of SIM cards

No need to replace / recharge SIM cards on-site

Hot swap of SIM Cards with no service interruptions

Example: GoIP with Remote SIM support will no longer require on-site SIM Card replacement or recharge. Management of a group of GoIPs can be achieved remotely, efficiently, and cost-effectively.

Key Features

Central management and secure storage of all SIM cards

Control and Supervision of your SIMs from your office

Flexible allocation of any SIM to any Gateway at any time

No local SIM cards need to be installed.

Still, the gateways may have SIMs for backup purposes
Immediate control of all your SIM cards from your office

Easy and powerful web based management.

Easy to configure convenience any time

Switch SIM cards between connected gateways, configuration via remote client

Save huge costs on technicians and traveling to the installation sites

Re-allocation of SIM Cards to different GSM channels

Free SIM Server for advanced SIM card managements

Independent SIM operation

DDNS for private IP support

Basic Features

Storage array for 32 SIM cards

Hot swap

Standalone operation to support up to 32 independent SIM connections

Free SIM Server for management of SIM Banks and SIM cards (> 10K SIM connections)

DDNS

Enhanced Features

Free Server to manage SIM Banks and Remote SIM devices

Management of over 10K SIM cards

Re-allocation of SIM cards among Remote SIM devices

SIM territory concept

Programmable schedules for SIM card re-allocation

Seamless re-allocation without call interruptions

Supported Standards

IP

GSM11.11 3.3V

TCP

UDP

HTTP

ICMP

DHCP CL & SRV

NTP

TFTP

Tos

Physical and Environmental

Operating temperature: 10°C to 40°C (50°F to 104°F)

Storage temperature: 0°C to 50°C (32°F to 122°F)

Weight: 1.2 kg (Including AC/DC Adapter)

Size: 220 mm (W) x 370 mm (L) x 75 mm (H)

Power: 12 V 2A (AC/DC adapter included).

Warranty: one year

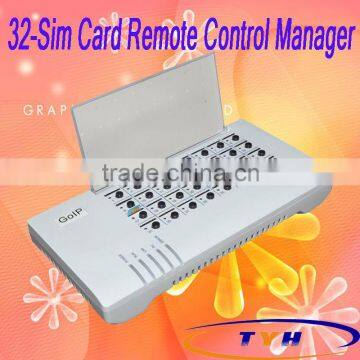

Detailed picture

Usage:

 A:System architecture(Independent SIM Bank):

As shown in the above figure, several GoIP devices (up to 32 ways) be connected to the SMB32 through Internet. The SIM cards installed with the devices are all integrated to the SMB32 to be controlled and scheduled by the latter. (SIM Bank mode: server mode)

B.System architecture(through SIM Bank)

More than 10,000 SIM cards be collectively scheduled and managed via the SIM Server. The planned tasks are allocated by the SIM Server (SIM Bank mode: client mode)

C:Exchange logic(through SIM Bank)
