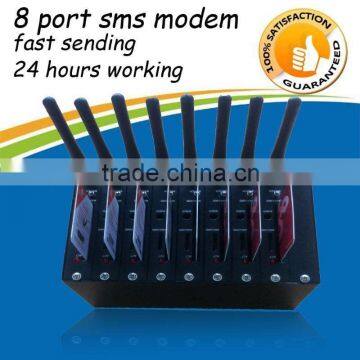

Wavecom Q2403 gsm bulk sms modem,8 port modem pool,stk modem rs232

Module NO.

Function

Frequency(MHz)

Q2303

SMS(600pcs per hour)

900/1800

Q2403

SMS,MMS

900/1800

Q2406

SMS,MMS,TCP Protocol

900/1800

Q24plus

SMS,MMS,TCP Protocol

850/900/1800/1900

Key Features

♦ RS232/USB GSM modem pool

♦ Based on Wavecom industrial modules

♦ Q2303A/Q2403A/Q2406B/Q24plus

♦ GSM: 900/1800 or 850/900/1800/1900

♦ 8 x SIM card(big/small) slots

♦ Wireless access to internet

♦ Comply with GSM phase2 standard

♦ Cluster send and receive SMS

♦ Maximum transmitting speed 115KBps

♦ Input voltage: 100 to 240V

♦ Working temperature: -20 to +60 degrees Celsius

♦ Storage temperature: -25 to +70 degrees Celsius

♦ Double tone multi-frequency function(DTMF)

♦ Size: 30 x 22x 15cm

♦ Send 600/800/1000/1200 SMS per hour by one port

♦ Weight: 3kg

  usb sim card modem

Basic Features:

♦Asynchronous,transparent or non-transparent,to a maximum 14400 bits / s

♦Baud Rate : 300-115200 bits / s

♦ Automatic baud rate: from 2400 to 19200 bits / s

 ♦ Fax support three

♦ Switched voice and fax
♦ V.42, V.42bis
♦ GPRS compatible
♦ WAP compatible
♦ SMA Antenna Interface
♦ SIM Card Outlet
♦ Power connector
♦ RS-232, the Mini-DB-9 connector
♦ AT command control ( GSM 07.07 and 07.05)

   usb sim card modem

Application:

♦ Large shopping malls, supermarkets

♦ Professional market, large wholesalers

♦ Large hotels,large-scale entertainment

♦ Large agencies

♦ Transport, logistics industry

♦ Large enterprises, and institutions

♦ Large hospitals, large bookstore

♦ Newspaper, television and radio stations

♦ Oil Company ( other chain business model)

♦ Government agencies or large township

   usb sim card modem

Hardware Feature:

♦ Support dual band:900/1800 MHz or quad-band GSM: 850/900/1800/1900 MHz

♦ Meet the ETSI GSM 2 + standards

♦ Class 4 ( 2W @ 900 MHz) Class 5 ( 1W @ 1800 MHz)

♦ 5 -24 VDC power supply (which be directly connected to the nickel- metal

hydride or lithium batteries)

♦ Operating Temperature: -20 ° C - + 55 ° C

♦ Storage temperature: -25 ° C - + 70 ° C

♦ Size: standard 1U chassis

   usb sim card modem

 Supported operating systems:

--Windows 7 (Home, Premium, Pro, Ultimate, Enterprise)

--Windows Vista (Home, Business, Ultimate, Enterprise)

--Windows XP (Pro and Home)

--Windows Server 2003 (original and R2)

--Windows 2000 (Server and Pro
