The Price Of Slotting Machine With CNC Slotting Machine For Sale
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | HRK | Model Number | HRK 4000mm | |
| Voltage | 380V/50HZ | Power(W) | 4KW | |
| Dimension(L*W*H) | 6000*2000*2000 | Weight | 11Ton | |
| Certification | CE&ISO | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

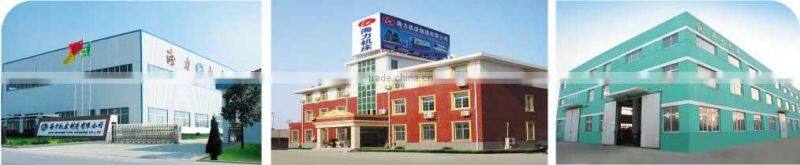

Factory View:

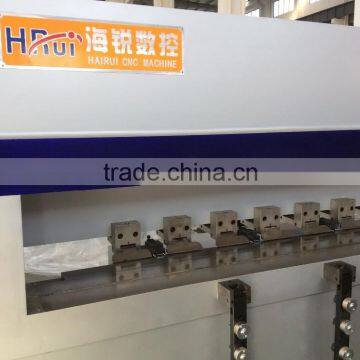

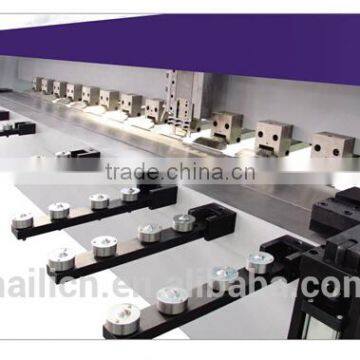

Products View:
Certificate View:
Hrui stainless steel CNC Pneumatic V Groover Machine, cnc v-cutting machine , V planing machine 3200mm to 8000mm
1.The equipment adopts the big pitched ball screw and high torqued servo motors as the main drive, which makes knives more stable and faster when processing.
2.The worktable of high strong plate as the surface makes the workpieces not easy to wear in machining.
3.A panel with the adjustable fuselage during the workpiece activities makes the point to every bit of mesa precision in 0.02 mm distance that within.
4.Equipment which adopts PLC man-machine interface programming allows the operating personnel easy to understand and locate accurately.

THE exclusive functions: it can not only v groove the steel directly, but also bevelly!
the leading precision of 0.02mm in the world.
Advantages:
1.precision:within 0.02mm
2.PLC system,easy to operate
3.widely use,grooving all the steel
4.customize to your need
c with servo motor
6.Pneumatic drive
Required specifications
Technical parameters | 3200mm | 4000mm | 5000mm | 6000mm | |
1 | Thickness (mm) | 0.3-6 | 0.3-6 | 0.3-6 | 0.3-6 |
2 | Length(mm) | 4000 | 4000 | 4000 | 4000 |
3 | Width (mm) | 850-1500 | 850-1500 | 850-1500 | 850-1500 |
4 | Grooving speed(m/min) | 15-60 | 15-60 | 15-60 | 15-60 |
5 | Grooving Area (mm) | 2.25 | 2.25 | 2.25 | 2.25 |
6 | Plate speed (m/min) | 5-0.5 | 5-0.5 | 5-0.5 | 5-0.5 |
7 | Y axle Minimum unit | 0.01 | 0.01 | 0.01 | 0.01 |
8 | Y axle Minimum positioning accuracy | 0.05 | 0.05 | 0.05 | 0.05 |
9 | Z axle Minimum unit | 0.01 | 0.01 | 0.01 | 0.01 |
10 | Z axle Minimum positioning accuracy | 0.02 | 0.02 | 0.02 | 0.02 |
11 | X axle Motor power(kw) | W=4 | W=4 | W=4 | W=4 |
12 | Y axle Motor power(kw) | W=1 | W=1 | W=1 | W=1 |
13 | Z axle Motor power(kw) | W=0.4 | W=0.4 | W=0.4 | W=0.4 |
14 | Air pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
15 | Dimension (L*W*H) | 5000*2200*2100 | 5800*2200*2100 | 6800*2200*2100 | 7800*2200*2100 |

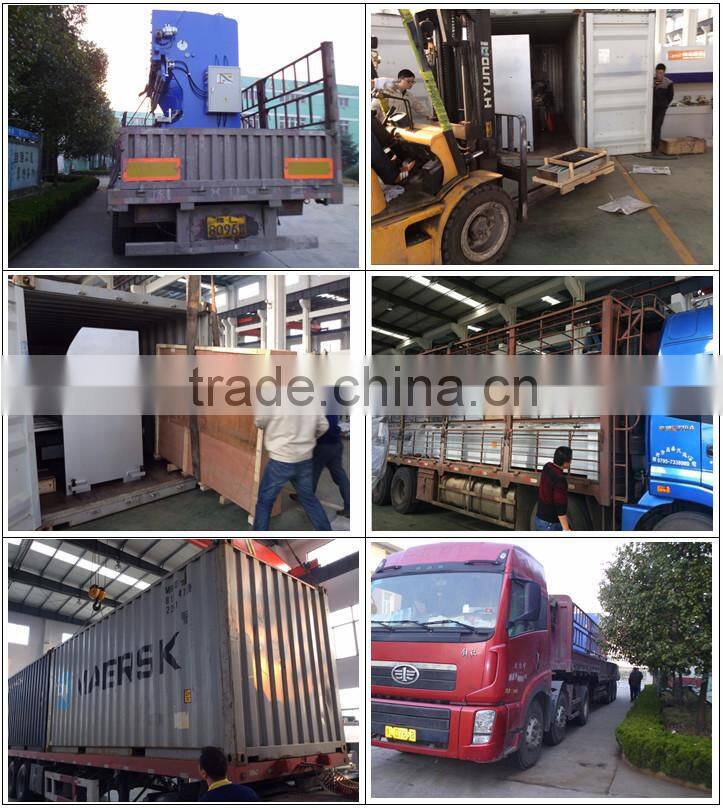

Shipping:

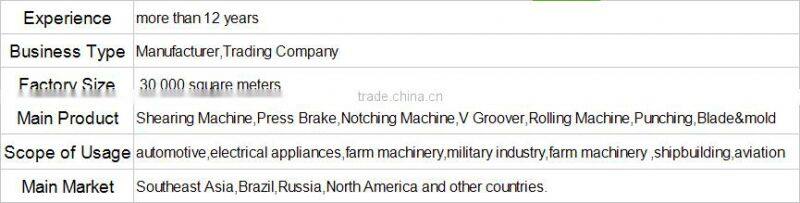

1 We have more than ten years of experience in the production of machine tools, and we have a good team for your service
2. We have strict quality control system. Our products passed the ISO and CE authentication,require good reputation in the market .
3.We accept OEM according to your requirement.
4.We will deliver as soon as possible once place the orders.
5.You can contact us at any time.
Customers View:
Q:How about your machine quality?
A:Anhui haili is a mature brand in CHINA,through years and years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.
Q:Whether the machine price can be more discount?
A:.HAILI always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.
Q: How to make payment?
A: we will require 30% Deposit to start the production through T/T payment. You can make the balance payment on sight of B/L.
Q:Can I change the color?
A:Of course, Our idea is to respect the wishes of customers, to provide the most perfect service,you can choose the any colour that you like.
Q: Where is your factory?
A:We located in Ma'anShan CITY, Our factory is particularly close to Nanjing, about an hour, if you are to visit the factory .We can pick you up at the airport.welcome to visit our factory!
