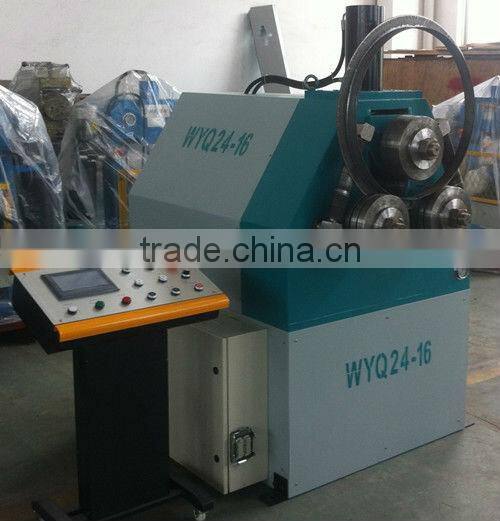

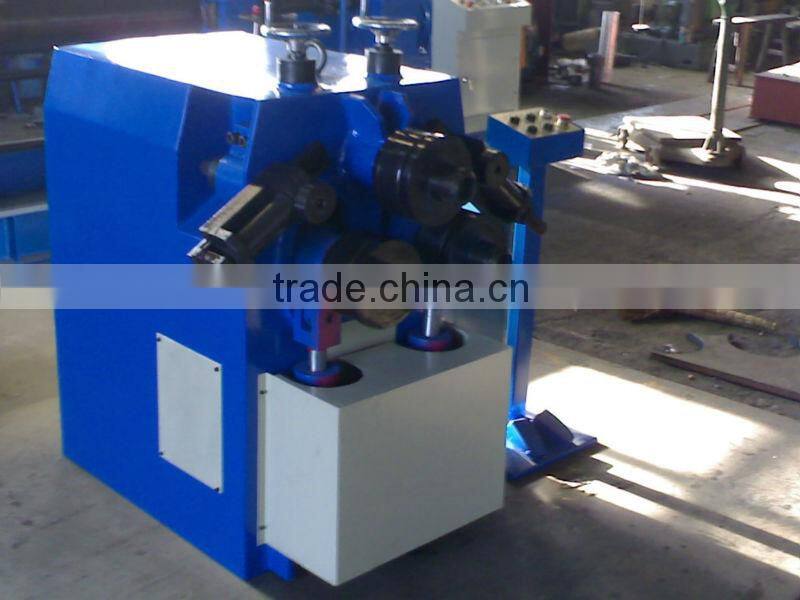

W24 Series CNC Hydraulic Profile Section Pipe Tube Bender H Channel Rolling Machine

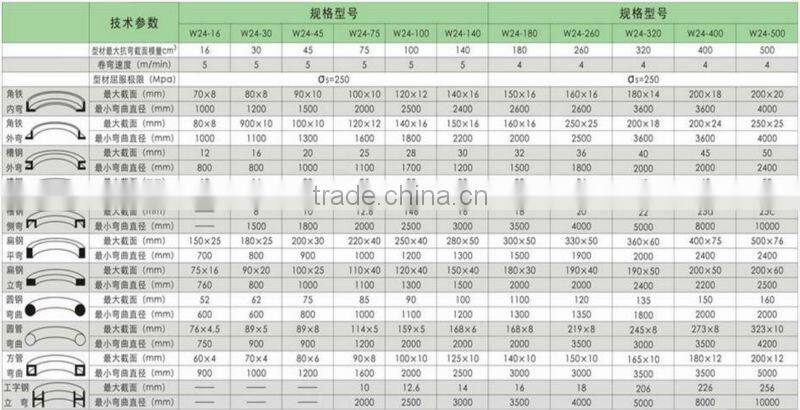

Specifications

W24 Series Profile Bending Machine, CE&ISO Quality standard

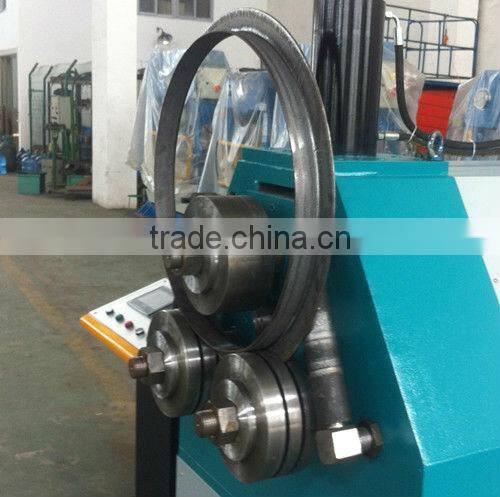

The features of the rotary bending machine:

1, all mechanical drive, compact structure, high performance;

2, three roller drive, uneasy to slip, thin-walled materials can also be bended;

3, both sides of the roller asymmetrical distribution so as to the reduction of straight line segments;

4, the work piece can be fed on both sides of the rollers ;

5, double foot-pedal with emergency stop, easy to operate;

6, the aircraft drive smooth, just adjust the pressure gold, available in different curvature round, curved or spiral-shaped;

7, changing the mold groove, can process all kinds of metal materials, such as angle steel, pipe, and other special-shaped cross-section profiles;

8, bending large radius profiles, avoiding the drawback of producing large bending mode which is a necessary complement to the series of single head, double head bending machine;

9, the machine is appropriate for mass production, fast, effectivel .with arc-line adjusting.

plete bending and prebending

3.placed horizontal or vertically

CE Certification for Shearing Machine and Press brake:

Notes of Both factories:

Jiang Su Hairui CNC Machine Tool Co,.Ltd and Anhui Haili Machine Tool Co., Ltd belongs to the same boss. Both company are focusing on press brake, shearing machine, notching machine and v groover machine , rolling machine and so on! When Hairui factory is newly built up for manufacturing higher standard CNC machines, please understand! We had passed CE, ISO, BV certifications in the past years.

How to reach our factory:

True strength weclome your inspection! Our factory is about 30km far away from Shanghai. You can come here by train or air to Nanjing, which takes you 2 hours at most. We will pick up you from the train station or air port.

Warranty of our machines:

One year warranty for the main components, 5 years for the whole structure.

 Using instruction:

we have a quality checking team and after-sales technicians, besides, we also provide videos for use.

  H Channel Rolling Machine
