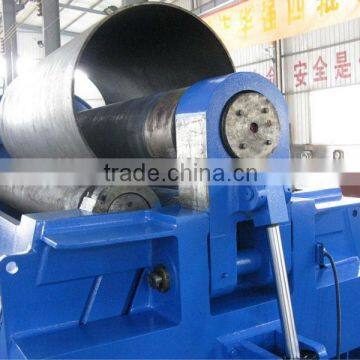

W11 Symmetrical Merchanical 3-roll cone rolling machine 20*2500

FOB Price

USD $12,300 - $68,900 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	Hrui	Model Number	W11 20x3200mm
Machine Type	Coiling Bending Machine	Raw Material	Sheet / Plate Rolling
Material / Metal Processed	Carbon Steel	Power	Hydraulic
Automation	Manual	Extra Services	Machining
Certification	CE

Product Description

Specifications

W11 20*2500 manual sheet metal cone rolling machine
Cheap Price
All welding structure
long using life and high effiency

W11 Symmetrical Merchanical 3 roller Plate Bending Machine 20*2500 mm

The machine’s use

1. High productivity and good precision for metal sheets bending, different up-die and bottom-die, working for multifarious pieces. One-off bending shaped by one time stroke. Can make complex shapes by repetitious bending work. Can punch with corresponding die.

2. Mechanical stopper in oil cylinder, typical of high feedback precision for position of gliding block ,accurate and stable operation,good synchronizing performance ,and high repeated positioning precision of gliding block.

Main features:
This machine structure pattern is three-roll symmetrical expression; the upper roll is primarily transmission, the lower roll makes the vertical vibratory movement in order to clamp plate, and through the lower roll gear and the upper roll gear meshing, simultaneously takes the master drive.The structure is compact, the operation service is convenient.

Model	Plate width	Max. plate thickness	Pre-bending thickness (mm)	Minimum reel diameter	Plate yield limit (MPa)	Diameter of upper roller (mm)	Diameter of lower roller (mm)	Diameter of side roller (mm)
W11S-12×4000MM	4000	12	8	800	245	380	340	280
W11S-16×3200	3200	16	12	800	245	380	340	280
W11S-20×2500	2500	20	16	800	245	380	340	280
W11S-25×2000	2000	25	20	800	245	380	340	280
W11S-32×2500	2500	32	25	1500	245	520	500	350
W11S-32×4000	4000	32	25	1300	245	650	580	480
W11S-40×3200	3200	40	32	1300	245	650	580	480
W11S-45×2500	2500	45	40	13600	245	650	580	480
W11S-50×2000	2000	50	42	1300	245	650	580	480
W11S-50×3200	3200	50	40	1800	245	680	650	520

W11S 20*2500 Upper Roller Universal Plate Rolling Machine, 3 roller plate bending machine , 3 roll plate bending machine , rolling pipe bending machine , 3-roll pipe bending machine , 3-roll Rolling machine , 3-roll plate Rolling machine , 3-roller plate Rolling machine , sheet metal Bending machine , manual sheet metal bending machine , cone rolling machine
