Welding enquipment
US$ 500 - 600
/ Piece
10 Pieces(Min. Order)
- Fuzhou/Shanghai......
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | BOBIG or OEM | |
| Model Number | BDW190LE |
Product Description
Specifications
Welding equipmentCurrent:190A,100%Copper wire
AC generator Power:3.0kW/3.3kW
New italy technology alternator with patent
Welding equipment

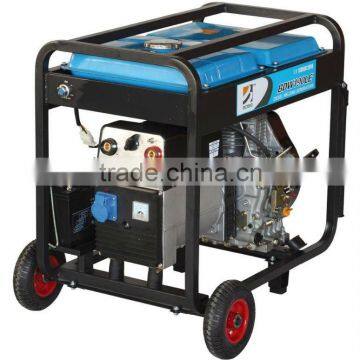

100%COPPER WIRE DIESEL WELDING GENERATOR
| Technical Data | |||
| Model | BDW190LE | ||
| DC Welder | Rated Current (A) | 170 | |
| Rated Voltage (V) | 21-31 | ||
| Welding Current Range (A) | 45-190 | ||
| Continous working | S1 | ||
| Duty cycle | 190A/20%,170A/60% | ||
| Diameter of electrodes | 1.2-4.0mm | ||
| AC Generator | Phase | Single /Three Phase | |
| Frequency (Hz) | 50/60 | ||
| Rated Output (kw) | 3.0/3.3 | ||
| Rated Voltage (V) | 220V,240V(according to your demand) | ||
| Power Factor | 1.0/0.8 | ||
| Engine | Model | BD186FA | |
| Max. Output(HP) | 9.6/3600rpm | ||
| Displacement(cc) | 418 | ||
| Type | Single-cylinder,4-stroke,air-cooled,Vertical | ||
| Compression ratio | 19:01 | ||
| Starting System | Recoil/Electric | ||
| Lubrication System | Pressure splashed | ||
| Cooling System | Air cooled | ||
| Fuel Tank (L) | 15 diesel | ||
| Oil Capacity (L) | 1.65 | ||
| Noise Level(at 7m) | 82dB | ||
| Dimension(LXWXH)mm | 780x590x600 | ||
| G.W (kg) | 120 | ||
| L:"L"mean:square tube,foot pad,rounded board,2-"8"wheel | |||
| Accessories for diesel welding generator is Electrode holder,ground clamp,socket,manuals | |||
