Home > Products > Promoting Products > Italian Technology,NEW 190A DC Welding Generator Silent Type
Italian Technology,NEW 190A DC Welding Generator Silent Type
US$ 400 - 500
/ Piece
50 Pieces(Min. Order)
- Fuzhou
- T/T L/C D/P D/A
You May Like
-
OEM Supplier,8KW to 30KW QUANCHAI Electric Generator
-
8KW to 30KW QUANCHAI Power Generator Set
-
Various Payment Term! 8KW to 30KW QUANCHAI Electric Generator
-
Free Shipping! Self-exciting Copper Alternator Generator With Patent!
-
8KW to 24KW LAIDONG Silent Diesel Generator EPA
-
12KW to 72KW DEUTZ Air Cooled Diesel Generating Set
Product Details
| Place of Origin | Fujian, China | Brand Name | BOBIG | |
| Model Number | BDW190LE |
Product Description
Specifications

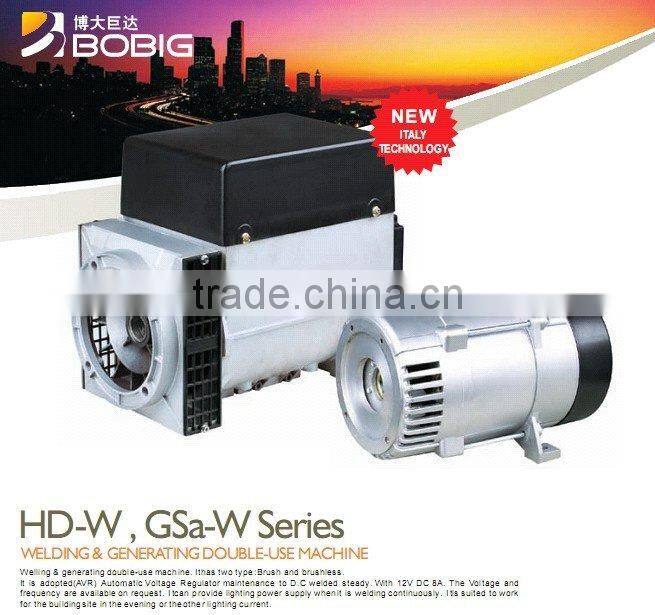

DC Welding generator 190A1)Italy technology alternator
2)Excellent performance in welding
3)Different from others
DC Welding generator 190A
Copper winding,New italy technology alternator(SINCRO type),controlled by reactor,exllcent welding application
| Rated frequency (Hz) | 50 60 |
| Rated power(kW) | 5.0 5.5 |
| Rated voltage (V) | 230 240/120 |
| Rated current (A) | 21.7 23/45.8 |
| No.of phase | Single |
| Power factor (cosφ) | 1 |
| Weldling voltage at zero load (DC)(V) | 60-70 |
| Rated weldling current DC(A) | 180 |
| weldling voltage(DC)(V) | 25-30 |
| Weldling load continous ratio | 60% |
| Weldlig current adjustment range(A) | 50-190 |
| Electrode φ(mm) | 1.6-4.0 |
| Rated speed (r/min) | 3000 3600 |
| Excitation mode | Self-excitation and constant voltage (AVR) |
| Recifying mode | IGBT+three-phase rectifying bridge (PWM) |
| Insulation grade | F |
| Pole number | 2 |
| Engine Model | BD186 |
| Engine type | Single-cyinder,four-stroke,OHV,air-cooled |
| Cylinder NO,-bore×stroke(mm) | 1-88×64 |
| Displacement | 389 |
| Rated power[kW(Hp)/(r/min)] | 10.0/300011/3600 |
| Compression ratio | 8.5:1 |
| Rated rotation speed | 3000 3600 |
| lgnition system | T.C.I |
| Cooling system | Air cooled |
| Lubrication system | Splash |
| Starting system | X:Recoil starter E:Electric starter |
| Fuel type | Automotive unleaded gasoline |
| Lube oil Brand | CDgrade or SAE10W-30,15W-40 |
| Capacity of cooling Water(L) | Without |
| Lube capacity (L) | 1.1 |
| Starting motor capacity (V-kW) | 12V 0.4kW |
For more detail information,pls feel free to contact with us.
