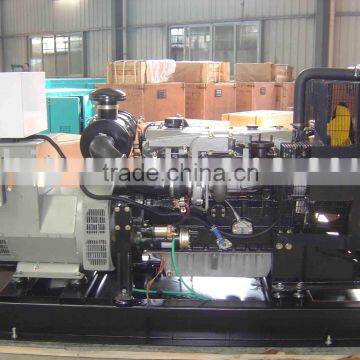

Diesel Generator

Specifications

Diesel Generator

Detailed Product Description

Features:

1. Engine and alternator shall be mounted on a same frame steel skid

2. Built-in damper for anti-vibration

3. Small size, low weight, easy to operate, installation and maintenance

4. World most famous brand diesel engine: Perkins 1000 series engine-1004D-E4TG1, 1006-E6TG1

5. World famous brand AC alternator: Stamford

6. Advanced and reliable control module: Key start, auto start

8. According to professional standards

Alternator Features:

1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon
2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

Soundproof/Silent Box:

1. Excellent ventilation

 2. Oil tank mounted on base frame for 12 Hours working

 3. Highly Corrosion Resistant construction

4. Excellent Access for Maintenance

5. Security and Safety

6. 1m<80DBA / 7m<70DBA

Engine:
1)Cooling method: closed water cooling
2)Starting method: electric start
3)Rated speed: 1,500 / 1,800rpm

Alternator:
1) Brand: Stamford,Leroysomer, Copy stamford,etc

2) Rated output: 20-536KW
3) Rated voltage: 380,400,415/200,208,220v
4) Rated Frequency: 50 / 60Hz
5) Power factor: 0.8
6) Phase: 3-phase, 4-wire
7) Connection: Y or other type connection
8) Rated speed: 1,500rpm / 1,800rpm
9) Excitation: harmonic excitation or phase compound or brushless
11) Voltage regulation: automatic/manual
12) 1.0% voltage regulation (max.) in static conditions

13) Protection class: IP23

Control panel:
The panel is provided with:
a) Standard engine instrumentation
b) Voltmeter with selector switch
c) Ammeter with selector switch
d) Frequency meter
e) Current transformers
f) Instrument fuses duly wired and ferruled
g) Mcb of suitable rating with overload and short circuit protection
h) With AMF control panel or with ATS (automatic transfer system)

GU601A CONTROL PANEL WITH CURENT METER AND VOLTAGE METER

GU641A CONTROL PANEL

REMOTE CONTROL CANOPY

 Optional:

1. trailor type

2. Soundproof / water proof

3. ATS (automatic transfer switch)

4. Parallel system

5. Remote system

 Our Advantages:

1. Solve your technical problems in 24 hours and provide international warranty service for engines

2. Design the appearance form according to customers’ request

3. Polyester varnish for appearance protecting for shining and raining

4. Two hours testing before out factory5. ISO9001 and CE certification
