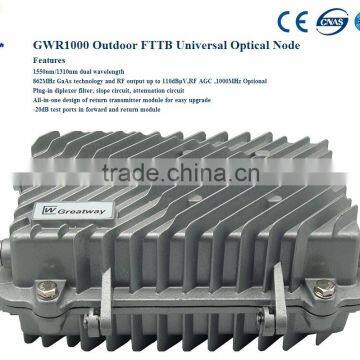

FTTP/FTTB CATV Optical Node/Universal Optical Node GWR1000

GWR1000 optical node provides network operator the flexibility to fulfill network need and optimize
network source. Both forward path receiver and return path transmitter have the same modular design for
easy field installation and maintenance. The optical power indicator and RF test port on the module assist the
operator checking the node status. User-friendly cover board indicates the main functions of the node. The
standard outputs of GWR1000 optical node are 2 independent RF ports and additional 2 split ports can be
added upon request.
With high quality FP laser or DFB laser, the return path transmitter module set up a reliable return
path optical link. User can power the GWR1000 by 220V AC or 60V AC.

Features:
1550nm/1310nm dual wavelength
862MHz/1000MHz/1200MHz GaAs technology and RF output up to 48dBmV
Plug-in diplexer filter, slope circuit, attenuation circuit
2 independent RF ports with or without 2 additional split outputs
All-in-one design of return transmitter module for easy upgrade
-20dB test ports in forward and return module
AC ~220V or ~60V power supply with surge and lightning protection
Independent 60V AC Power Input Port

Test condition:
¤ Forward path: input 59 channels Matrix PAL-D signal to standard optical transmitter and measure the
optical receiver C/CTB, C/CSO and C/N in conditions of -1dBm optical input (10km fiber + optical
attenuator) and 46 dBmV RF output (with 6dB slop board).
¤ Return path: return path specifications are measured in transmitter and receiver composed link.

Ordering Information
GWR1000-A-BC-D-E-FG/HI Optical Receiver
A: R for the 19” rack mount version with one RF output
2 for 2 independent RF outputs
4 for 2 independent RF outputs with 2 split ports

BC: 60 for 60V power supply
220 for 220V power supply

D: none for 860MHz Bandwidth
1000 for 1000MHz Bandwidth

E: FC for FC/APC connector
SC for SC/APC connector

FG/HI: none-forward only
XT- reverse path reserved
30/42- bandwidth split
65/87- bandwidth split

GWT1000-AB-CD-EF Return Transmitter Module built in GWR1000 node
AB: 10 for 1.0 mW optical output power
CD: FC for FC/APC connector
       SC for SC/APC connector
EF: None for FP laser
       DFB for isolated DFB laser (Default: 1310nm, CWDM wavelength optional)

Accessory Options
001: Attenuator Plug-in (0~20dB Option, 1dB step)
002: 0~20dB adjustable attenuator plug-in
003: Fixed value equalizer plug-in (0~20dB Option, 1dB step, 1000MHz)
004: 0~20dB adjustable equalizer plug-in
005: Reverse Equalizer plug-in (0~10dB option, 2dB step)
006: Diplexer (30/42, 40/52, 42/54, 55/70, 65/87)
