Servo Energy Saving Injection Molding Machine HT-150 ~ HT-300

HT series adopts new double pillar guiding type injection structure which is free from oil and equipped with patent hydraulic circuit design to perform the features of injection stability, wide range of injection speed and power saving. HT series are standard universal types that give wide range of applications including domestic hardware, electronic information product casings, automotive parts, lens and frames. This series may equipped with semi-closed loop system for more demanding product, such as optical and handset devices.

Features
User friendly    Easy nozzle alignment after injection carriage improved. Easy care and maintenance.
Precision          Semi-closed loop is more reliable in molding process (optional).
Speedy              High injection speed reducing cycletime.
Durable             Thicker platens to add strength, free from deforming molds.
Stable                Semi-closed loop and high efficiency cooling system are more reliable in molding process (optional).
Clean                 Molybdenum disulfide coated bushing free from grease & oil maintenance. Bearing & IHI Auto Lube system.
Power Saving   Power saving hydraulic circuit is patented to reduce production cost. FCS Energy Saving System and achieve the average power saving of 30%.
Modularized      Modularized power, hydraulic, mechanical components, east care.

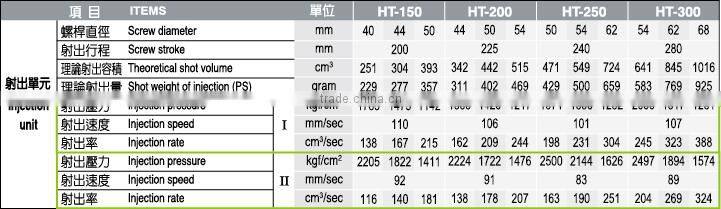

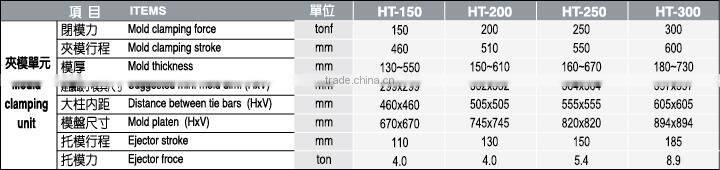

The following specifications are for your reference only and can not be used as the machine acceptance criteria. Please contact with our sales representatives to confirm the most appropriate machine features.

1.The shot weight is based on polystyene (PS) at specific gravity of 1.05.
2.The features are for your reference only. Due to continuous improvements, we reserve the right to amend any of the above specifications without prior notice.
