High-Speed / Close-Loop Hybrid Injection Molding Machine AF-30 ~ AF-110

AF Series High-Speed / Close Loop Hybrid Injection Molding Machine: AF-30~110

To have further raising of technology level, We announce another new injection molding machines with close-loop by hybrid type of electricity and oil. By the technology of leader and complete new products guided the field of injection molding machines in Taiwan to approach new generation.

Machine Features:
• Injection unit applied AC servo-motor to feed materials, which is precise and power saving.
• Adaopting MOOG close-loop high respondence servo valve and accumulator.
• The maximum injection speed could be 700mm / sec.
• Due to applying the structure by hybrid type of electricity and oil, it is able to do the process of feeding materials and opening-closing mold at the same time, to save much more cycle time of molding.
• The lubrication of teggle system applied release pressure lubrication system by electrically filling grease which was made in Japan to get strong efficiency of lubrication and to save oil.
• The new control system is built into this series of machines and the speed of system reaction is able to reach 1ms, having good sensitive reactio and stabilizing.
•The precision and stabilization are almost on same lever as all electric injection machiens to be suitable for producing super thin parts and products of micro-complicate precision.

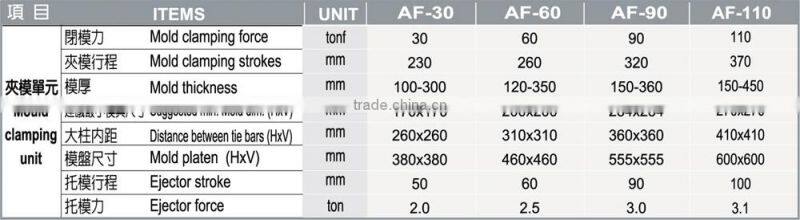

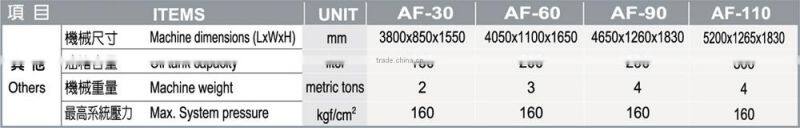

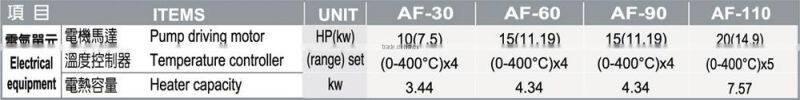

The following specifications are for your reference only and can not be used as the machine acceptance criteria. Please contact with our sales representatives to confirm the most appropriate machine features.

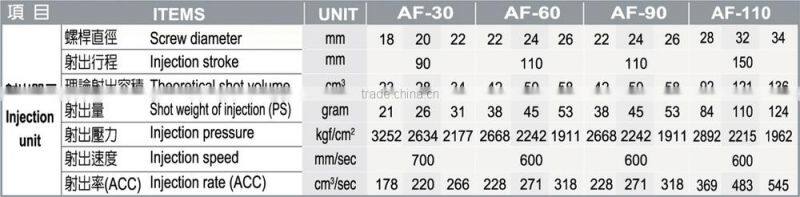

1.The shot weight is based on polystyene (PS) at specific gravity of 1.05.
2.The features are for your reference only. Due to continuous improvements, we reserve the right to amend any of the above specifications without prior notice.
