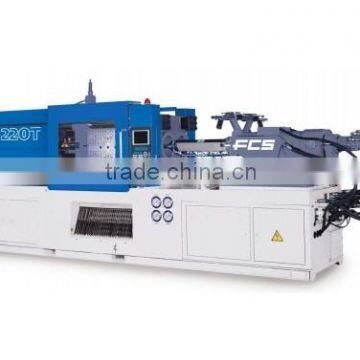

Two Component Injection Molding Machine (Rotary Axis) FB-140T ~ FB-220T

FB-T Series Two-Component Injection Molding Machine(Rotary Axis) : FB-140T, 220T

We are the first company to successfully research and develop double color injection molding in Taiwan. Being the most experienced and having advanced technology capabilities, we are able to satisfy our customers' needs.

Other features:
Two isolated barrel sets inject at the same time, thereby reducing cycle time. The shorter cycle time increases productivity of the machine and hence helps to yield bigger profits.
With an accuracy reaching 0.01mm, linear potentiometers are used in the two injection sets and clamping molds to accurately control the injection process and the closing and opening of molds.
By PRO/ENGINEER computer aid designed clamping system, the clamp stroke and distance between bars have been enlarged for verstaile usage.
High torque and excellent performance of hydraulic motor can drive screw directly, thus shortening plasticizing time and saving energy.
Using only the finest steel and innovative ion-nitriding process, the hardness of screw and barrel reaches above HV950 to ensure high wear resistance.
Superior hydraulic design system ensures the decrement of the tube pressure. Assembled with pump and motor, it can lower the machine's noise to 80DB below.
With features such as limitations for screw cold starts, broken wire detection, etc., a PID temperature controller is used to control the temparature at ±1°C.
Using water distributor with thermometer, molding quality can be improved through well control of temperature.
Fully automatic lubrication device ensures excellent lubricating effect and assures machine's accuracy.
Bad product detecting function recognizes short-shot or other abnormal products.
Larger product dropping passage allows the machine be adoptable to to use with conveyor for fully automatic production.
With insert function, this type of machine can produce triple colored products.

The following specifications are for your reference only and can not be used as the machine acceptance criteria. Please contact with our sales representatives to confirm the most appropriate machine features.

1.The shot weight is based on polystyene (PS) at specific gravity of 1.05.
2.The features are for your reference only. Due to continuous improvements, we reserve the right to amend any of the above specifications without prior notice.
