300x1200 40W Led Panel Light
- Shenzhen
- T/T Money Gram
You May Like
Product Details
| LED Light Source | SMD 2835 | Warranty(Years) | 3 | |
| Input Voltage(V) | AC100~240V | Lamp Power(W) | 40 | |
| Lamp Luminous Flux(lm) | 600lm | Lamp Luminous Efficiency(lm/w) | 80 | |
| Color Temperature(CCT) | Other, 3000K/4000K/6000K (±10%) | Working Temperature(℃) | -20, 40 | |
| Working Lifetime(Hour) | 10000 | Lamp Body Material | Aluminum | |
| IP Rating | IP44 | Certification | CE, ETL, FCC | |
| Place of Origin | China | Brand Name | Tdrshine | |
| Model Number | GLM-AAAM-X |
Product Description
Features
1. Thickness:12mm
2. LED panel light lightguide Main material cover: Acrylic lightguide board (guide light from four edges)
3. Color: Single color,RGB; (various colors available)
4. Input Voltage:AC100-240V℃
5. Ambient temperature: -10℃~40℃
6. Lifetime: ≥100,000h
7. Beam angle: 120°
8. Installation methods for option: Hanging and Embedded
9. Certificate: TUV,CE, FCC, RoHS approved,
10. Warranty : with 3 years
PARAMETER
- Item NO.: GLM-AAAM-X
- Dimension: 600mm x 600mm x 12mm
- LED type: SMD 2835
- LED Q'ty: 220pcs
- Material: Aluminium + PMMA
- Beam Way: Beam at two sides
- Working temperature: -10.C~40.C
- Installation method: Embedded.Hanging
- IP rate IP40
- N.W.(±0.1Kg) 4.25Kg
PHOTOELECTRICITY PARAMETER
- CCT .: 2900-6500K
- Flux.(±10%): 6000lm
- Light Efficiency(±10%): 88lm / Watt
- Input voltage: AC 110-240V
- Input Power: 46W
- CRI: Ra>80
- Lux.at 2Meters(±10%): 420lx
- Dimmable: Dimmable or Non Dimmable are available
- Lighting Angle: 120°
- PF: >9.0

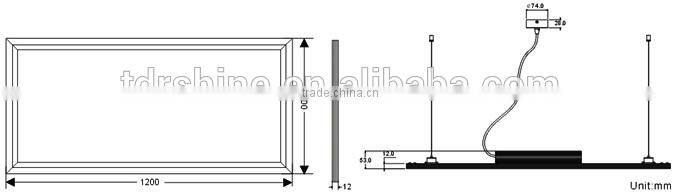

DIMENSIONAL DRAWING
APPLICATION
1. Commercial lighting, environmentally friendly lighting, warehouse , supermarket and home illumination.
2. IT, call centers, shopping malls and Exhibition Hall, art gallery, the hospital hotel and other public places.
3. Exhibition Hall, art galleries, museums, offices, reading-room, corridor, staircase lighting,such as contour range
HOW TO CHOOSE LUMINOUS EFFICACY OF LED PANEL LIGHT?
Light source: low power SMD LEDs (placed in the edge of the plate)
Quick response when power on , no noise, no UV, no strobe light;
Adpot own-designed LED driver with high power factort;
Low luminous decay, Quick response when power on, long lifespan, no noise, no UV, no strobe light, no pollution;
Conclusion: selection LED panel light should not only consider high luminous angle, but also consider energy-saving and luminous efficacy. According to LED panel light lifespan, luminous efficacy can well reflect LED Pane light whether energy-saving.
If you choose to 3535 SMD LED panel light as light source, emitting 5213lm with only use 60W power which means that our luminous efficacy is 87lm/W. If you choose to 5630 SMD LED panel light as light source, emitting 7041lm with only use 60W power which means that our luminous efficacy is 117.3lm/W.
