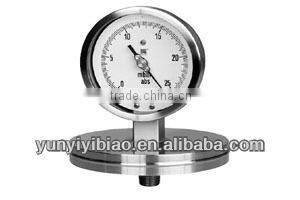

Diaphragm Type Piezometer

Standard packing(or according to the customer request)

Specifications

The anti-corrosion diaphragm pressure gauge

Features of the anti-corrosion diaphragm pressure gauge :
Accuracy: 2.5
Ambient temperature: -40 ~ +70 °C; relative humidity less than 90%
Temperature effect: When the temperature deviation from 20 ± 5 °C, the temperature of the additional error of less than 0.04% / °C
Working position: vertical installation.
Housing protection grade: IP64

diaphragm material: 0Cr7Ni12Mo2 (316); Monel (Cu30Ni70); Hastelloy (H276C); tantalum (Ta) and fluorine plastic (F4).

flange material: stainless steel 0Cr17Ni12Mo2 (316); stainless steel lined plastic (316 + F4)

gasket material: nitrile rubber; fluorine rubber; silicone rubber and fluorine plastics.

Type of the anti-corrosion diaphragm pressure gauge :

About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.

If you need this anti-corrosion diaphragm pressure gauge , please visit the website
