Mpa Explosion Proof Electric Contact Pressure Gauge Types

mpa explosion proof electric contact pressure gauge types Standard packing(or according to the customer request)

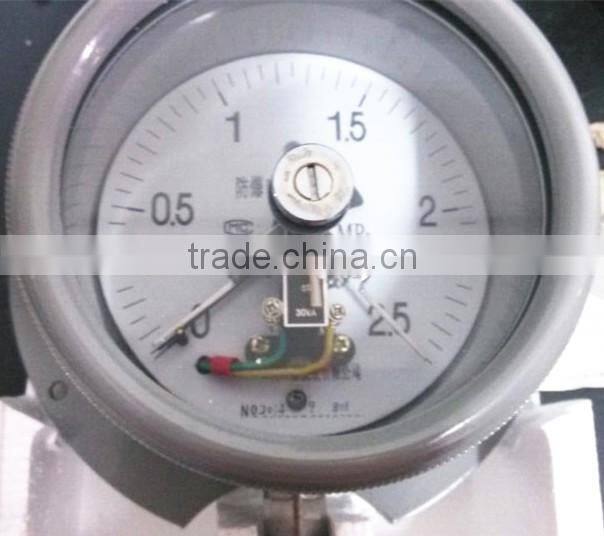

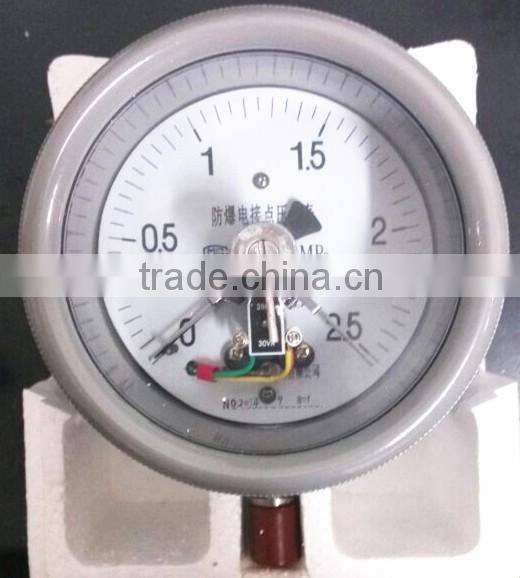

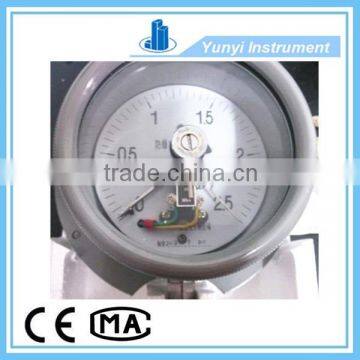

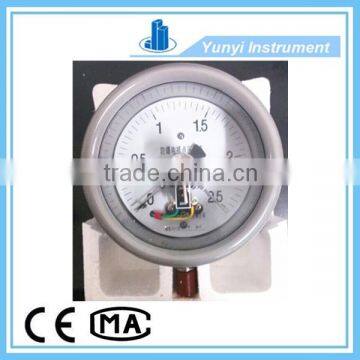

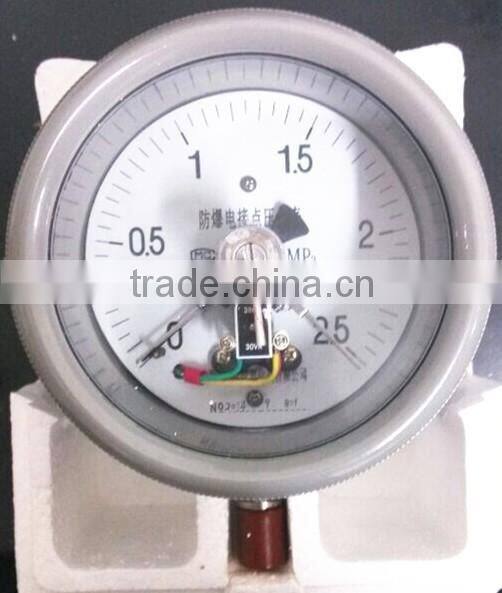

mpa explosion proof electric contact  pressure gauge types

The  specification of mpa explosion proof electric contact  pressure gauge types :

1 scale range:0~0.16;0~0.25;0~0.4;0~0.6;0~1;0~1.6;0~2.5;0~4;0~6;0~10;0~16;0~25;0~40;

0~60;-0.1~0.06;-0.1~0.15;-0.1~0.3;-0.1~0.5;-0.1~0.9;-0.1~1.5;-0.1~2.4MPa -0.2-3.6MPA

2 Control: upper and lower contact switch Postponed

3 Maximum working voltage: DC 220V or AC 380V;

4 Contact power: 10VA
5 Working position: vertical installation
6 Environmental conditions: -10 ~ 50 °C, relative humidity less than 80%, and an explosive mixture should fall below the rank of Ⅱ B T4 group, working vibration and pulsation sharply measured media contacts and reliable instrument to deal with the action has no effect.
7 Temperature effect: showing the value of not more than 0.4% / 10 °C, the set point is not more than 0.6% / 10 °C (temperature deviation from 20 ± 5 °C).
8 Dielectric strength: 50Hz sinusoidal AC 2000V lasted one minute
9 Weight: 6kg

About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.

If you are interested in this   gauge ,or want to know more details about it ,just feel free contact Katerina
