Bourdon-tube Connection Water Pressure Test Gauge

FOB Price

US$ 15 - 100 / Unit

1 Unit(Min. Order)

Port Xian
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shaanxi, China		Brand Name	Yunyi
Model Number	YTN-60/100/150

Packaging Details

water pressure test gauge
Standard packing(or according to the customer request)

Product Description

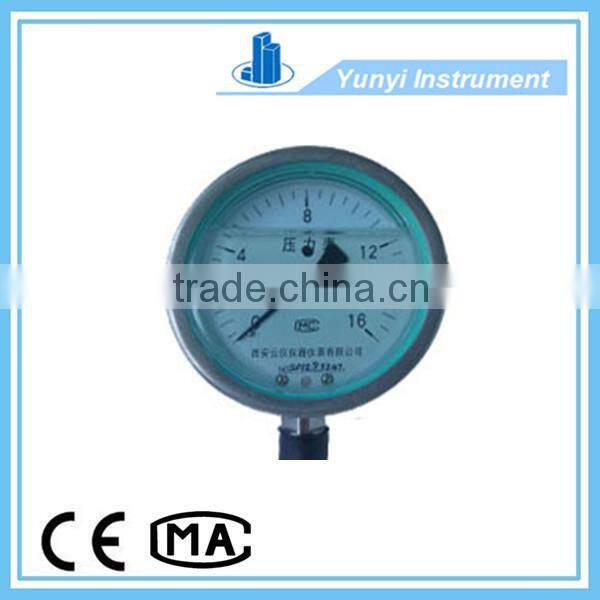

Bourdon-tube connection water pressure test gauge

Description of water pressure test gauge :

Bourdon-tube connection Shock-proof pressure gauge is suitable for the severe vibraton environment, can tolerate the pulsation, impact and sudden unloading of the medium. Widely used in machinery, petroleum, chemical industry, metallurgy, mining and electricity etc, to test the pressure of medium that without corrosive effect on the copper and copper alloy.

Specification of water pressure test gauge :

Type	Structure	Accuracy(%)	Range(MPa)	Environmental
YTN-60	diameter without brim	±2.5	0~0.16 0~0.25 0~0.4 0~0.6 0~1.0 0~1.6 0~2.5 0~4 0~6 0~10 0~16 0~25 0~40 0~60	Temperature of the surrounding environment : -5~55°C;-25~55°C. Using work environment vibration frequency No more than 25 hz, amplitude is not more than 1 mm
YTN-60T	diameter with back brim
YTN-60Z	axle without brim
YTN-60ZT	axle with front brim
YTN-100	diameter without brim	±1.6 ±1.0	0~0.16 0~0.25 0~0.4 0~0.6 0~1.0 0~1.6; 0~2.5 0~4 0~6 0~10 0~16 0~25 0~40 0~60; 0~100 0~160;0~250 -0.1~0.5;-0.1~0.9;-0.1~1.5 -0.1~2.4 -0.1~0
YTN-100T	diameter with back brim
YTN-100Z	axle without brim
YTN-100ZT	axle with front brim
YTN-150	diameter without brim
YTN-150T	diameter with back brim
YTN-150Z	axle without brim
YTN-150ZT	axle with front brim

If you need shock-proof pressure gauge, precision shock-proof pressure gauge, diaphragm shock-proof pressure gauge, stainless steel shock-proof pressure gauge, please contact me freely.

Or you can view our website:

Company Profile

Xi'an Yunyi Instrument Co., Ltd.

Xian Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer, Mr Tian has more than 30 years experience on this area, and he is one of the engineers who introduced the Rosemount technology. We are specialized in developing pressure transmitter, etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
