China Manufacturer Hydraulic Dead-Weight Tester 0-700 BAR

FOB Price

US$ 869 - 20,000 / Unit

1 Unit(Min. Order)

Port Tianjin
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shaanxi, China	Brand Name	Yunyi
Model Number	FKQ	Power	Hydraulic
Usage	Universal Testing Machine

Packaging Details

China manufacturer Hydraulic Dead-Weight Tester 0-700 BAR
Wooden box package
size:52*45*33cm 26*26*26cm
Weight:54-150kg

Product Description

China manufacturer Hydraulic Dead-Weight Tester 0-700 BAR

FKQ gas dead weight tester

Application:
Measure and calibration gauge pressure, absolute pressure, vacuum pressure (negative pressure), etc.

Features:

1. The piston system uses tungsten carbide materials, wear-resistant, temperature drift coefficient and long service life.

2. Pressure range -100KPa ~ 600KPa within optional

3. Meet JJG1086-2013 "gas piston gauge test procedures".Different form traditional oil-lubricated gas piston gauge.

4. Quick Pressure Interface , convenient and quick.

5. The unique valve design, convenient regulator.

6. Optional temperature, pressure drop digital signage system, convenient and quick.

7. The positive and negative pressure switch, convenient and quick.

8. Measuring range: agreement on behalf of the nominal measuring range and the actual measurement range.

9. Piston system can easily take out calibrate (not to carry heavy main frame)

Parameter:

Model number

Pressure range(MPa)

Accuracy

Medium

FKQ-0.25

-0.1~0.25

0.05%

0.02%

0.01%

0.005%

Pure nitrogen

FKQ-0.6

-0.1~0.6

Pure nitrogen

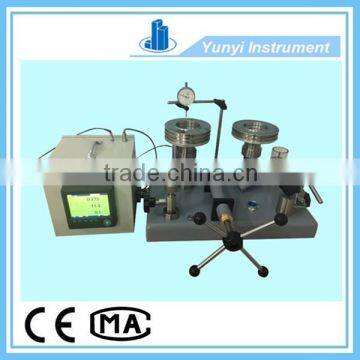

KY Series Double postion Dead Weight Tester

Description:
Mainly used to calibrate other dead weight tester, the configuration of the piston main piston displacement system and digital pressure indication and temperature indication system provide convenient for calibration .It has the pressure port to test pressure gauges and pressure transmitters also.

Featues

1 Piston in the starting range measurement duration, the indicators in full compliance with JJG59-2007 "deadweight", JJG99-2006 "weights" national verification procedures.

2 Piston and cylinder grinding by Seiko, the roundness error and the gap is extremely small, and thus greatly improve piston rotation duration, there is a corresponding decrease in the rate of decline of the piston, increased discrimination.

3There's shut-off valve for the target gauge, can beshut off the pressure between the subject system.

4 Weight has been corrected pressure deformation coefficient and the local acceleration of gravity.

5 Optional digital display: digital temperature, displacement, pressure and other parameters of the display;

6 Measuring range: Nominal Nominal measurement range consistent with the actual measurement range.

7 Piston system can easily take out to calibrate(not to carry heavy main frame).

8The weights unit could be Kg and MPa.

9 Advanced pressurization system, lightweight and durable. Can be easily suppressed to 100MPa.

10 Using weights hanging basket structure, low center of gravity, excellent stability.

11 With fast pressure connections, no leakage.

12 Each were issued northwest measurement test center test certificate

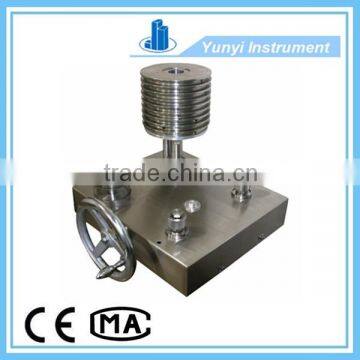

JQ Series Enhanced type dead weight tester

Description:
Improved type combined YS and KY Series dead weight tester.

Features

Meet JJG59-2007 piston gauge test procedures and other national standards

Piston system uses tungsten carbide structure

Piston system with low center of gravity is more stable way rotation

Piston rod with anti-off structure, to avoid losses caused by misuse

Modular design, lighting displacement indications, electric pre-pressurized system, embedded digital pressure gauge, can meet different customer needs

Overall welded pipes are used in the form of pipeline pressure 250MPa course there is no oil leakage phenomenon

For manufacturers of usage, disk using load-bearing structure, the weight is more convenient.

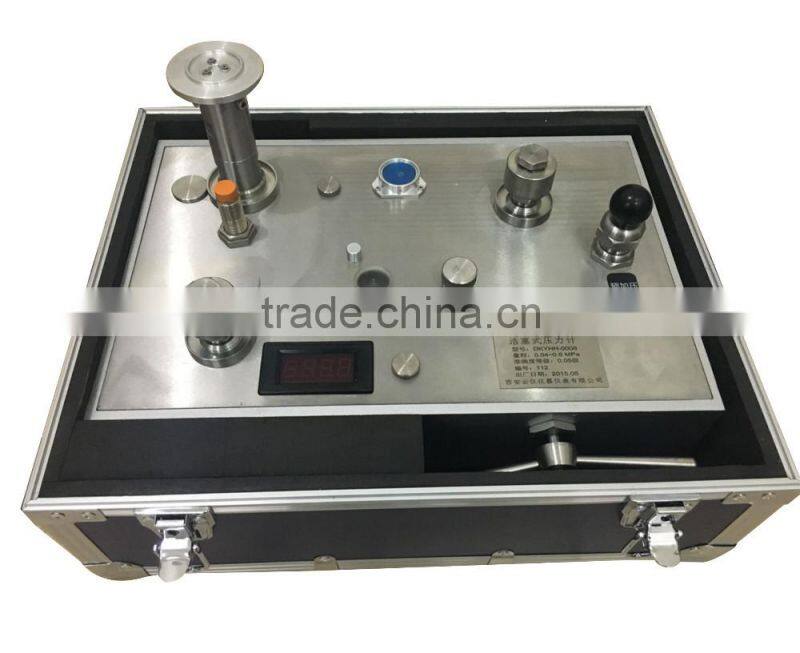

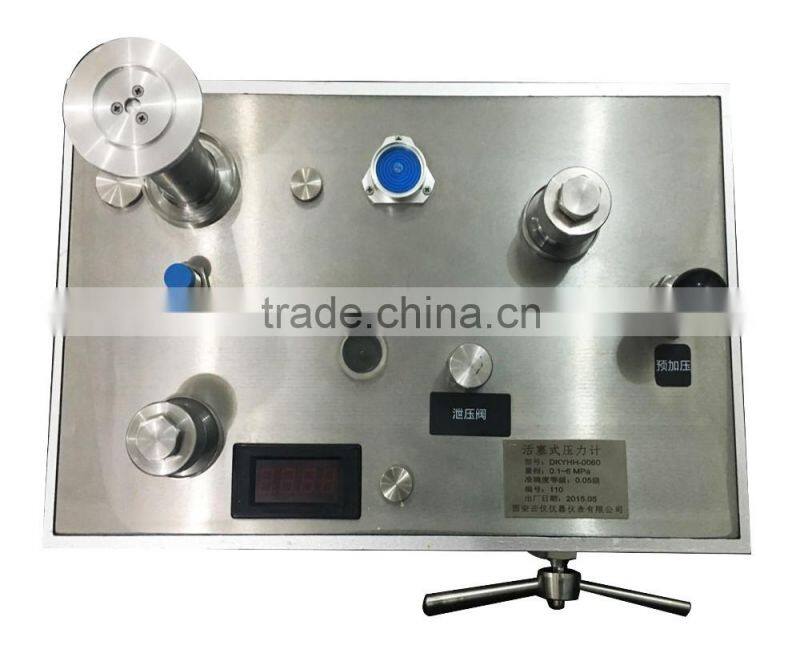

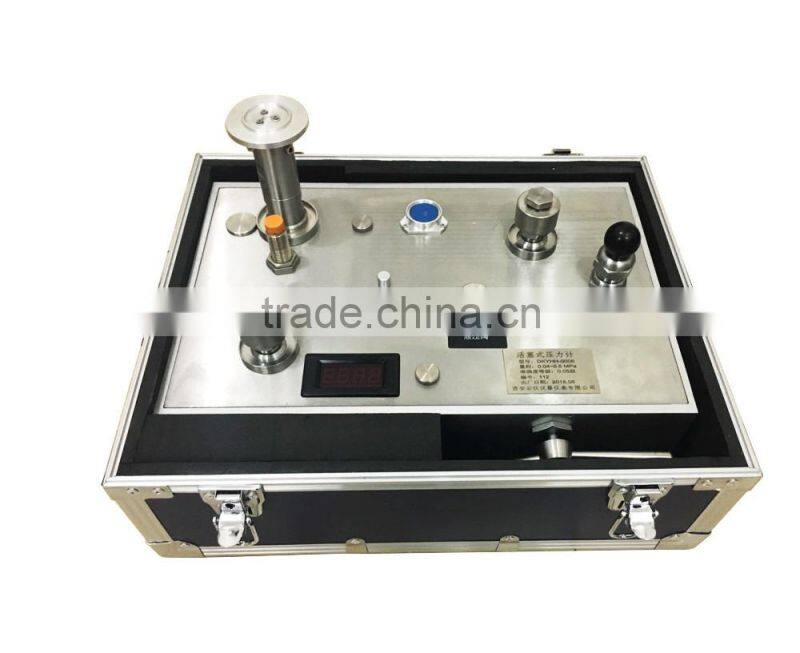

DK Series High-grade dead weight test

Features:

1 Modularity: Piston pressure generator system and fully modular structure, the various modules can implement a single function or a combination of work

2 Stability: liquid piston using low weights to ensure high reliability and stability.

3 Interchangeability: - any piston - sleeve unit

4 piston - sleeve means: the use of tungsten carbide materials; other parts made of high quality austenitic stainless steel, which can effectively prevent deformation. There are six ranges to choose from:

(-0.1-0.25) MPa (-0.1-0.6) MPa (0.1-2.5) MPa

(0.1-6) MPa (1-60) MPa (1-100) MPa

5 Weight: The demagnetization quality austenitic stainless steel

Parameter:

DKHH uncertainty:0.005%rdg(Medium:dioctyl sebacate)
DKHH0025	(0.1—2.5)MPa
DKHH0006	(0.04—0.6)MPa
DKHH0060	(0.1—6)MPa
DKHH0600	(1—60)MPa
DKLP0100	(1—100)MPa
DKHH uncertainty:0.02%rdg (Medium:dioctyl sebacate)
DKHH2025	(0.1—2.5)MPa
DKHH2006	(0.04—0.6)MPa
DKHH2060	(0.1—6)MPa
DKHH2600	(1—60)MPa
DKHH2100	(1—100)MPa
DKHH uncertainty:0.05%rdg (Medium:dioctyl sebacate)
DKHH5025	(0.1—2.5)MPa
DKHH5006	(0.04—0.6)MPa
DKHH5060	(0.1—6)MPa
DKHH5600	(1—60)MPa
DKHH5100	(1—100)MPa
DKHH uncertainty:0.02%rdg (Medium:Distilled water)
DKHH2025W	(0.1—2.5)MPa
DKHH2006W	(0.04—0.6)MPa
DKHH2060W	(0.1—6)MPa
DKHH2600W	(1—60)MPa
DKHH uncertainty:0.05%rdg (Medium:Distilled water)
DKHH5025W	(0.1—2.5)MPa
DKHH5006W	(0.04—0.6)MPa
DKHH5060W	(0.1—6)MPa
DKHH5600W	(1—60)MPa

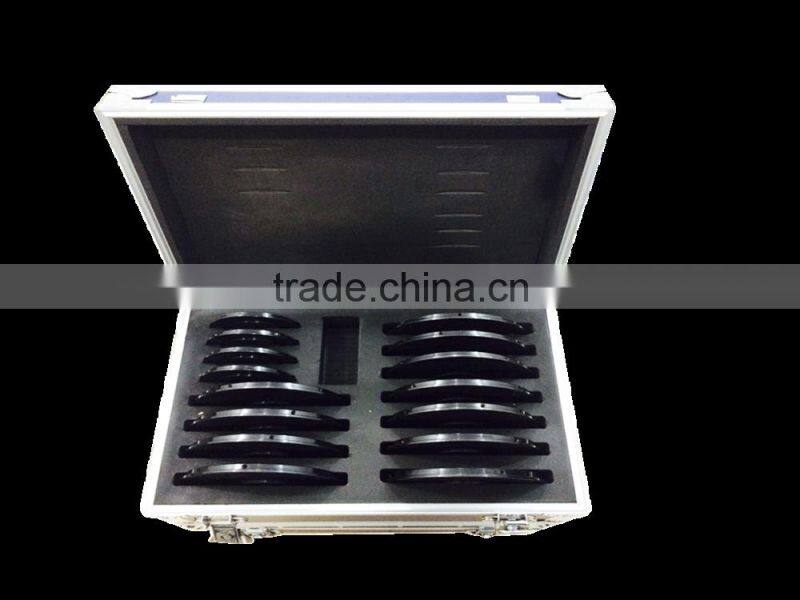

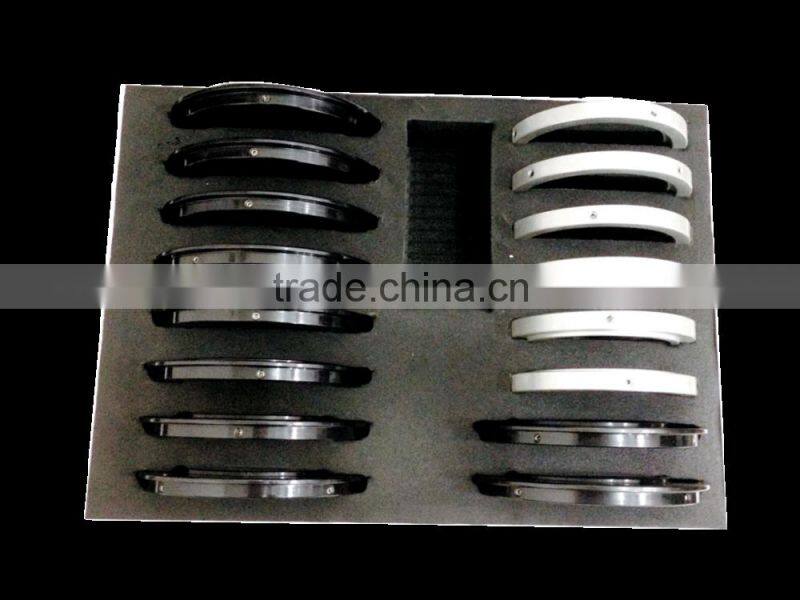

Detailed Images

If u are interested in any of them,kindly contact Katerina Skype:wangxaioyuncalar
