Songshan Clay Powder Grinder Mill
- Qingdao Shanghai or Tianjin
- T/T
You May Like
Product Details
| Condition | New | Type | Raymond Mill | |
| Motor Type | AC Motor | Power(W) | 42.7kw | |
| Capacity(t/h) | 3-30 | Place of Origin | Henan, China | |
| Brand Name | Songshan | Model Number | 4R2716 | |
| Dimension(L*W*H) | 5970*4000* 5200mm | Weight | 4000kg | |
| Certification | CE & ISO & CCC & BV | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Songshan clay powder grinder mill
1.Description of the Songshan clay powder grinder mill
Our company began to produce the high quality clay powder grinder from 1993.
Clay powder grinder is designated for processing superfine powder of over 300 non
inflammable and non explosive materials with Mohs hardness below Grade 8 and water content below
6% in the field of mine ,chemical industry, building materials.
The finished products can be adjusted freely from 400 to 1350 meshes (max meshes of 2500 for
some materials).
2.Features of the Songshan clay powder grinder mill
1.Low cost and zero pollution.
2.It covers a small area.
3.High capacity and much more durable.
4.Easy adjustment of product fineness.
5.Large transmission capability.
3. Applications of the Songshan clay powder grinder mill
Clay powder grinder can be used in the field of mine ,chemical industry, building materials,
such as barite,calcite, potash feldspar, steatite, marble, limestone,dolomite, fluorite,lime, active carclazyte,
active carbon,bentonite, kaolin, cement, phosphorus ore,gypsum,glass, manganese ore,titanium ore,
copper,mine,chrome ore,refractory materials, heat preservation materials,coal coke, coal fines,titanium
white powder, quartz, carborundum , zircon sand and so on.
4.Operating principles of the Songshan clay powder grinder mill

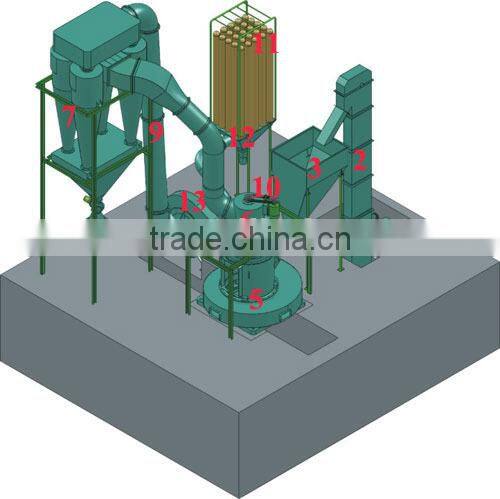

The whole system of R series clay powder grinder consists of main unit, classifier,
air blower, cyclone collector,pine device, feeder, bug dust collector, power- driven machine etc.
1. Jaw Crusher 2. Bucket Elevator 3. Hopper 4. Vibrating Feeder 5. Raymond Mill 6. Powder Concentrator 7. Cyclone Collector 8. Air-Lock 11. Bug Dust collector 12. Pine Device 13. Air Blower |
|
5. Spare parts of the Songshan clay powder grinder mill
|
Pre-sales services
1.Guide customers to choose products which are best suitable for them.
2.Design and manufacture tailor-made products according to the specific needs of customers.
Sales services
1.Strict inspection before the delivery of equipment.
2.Arrange the delivering of goods in accordance with contract.
After sales services
1.Designate special after-sales service personnel to instruct customers to install equipment.
2.For the problems, our company guarantee to provide resolutions within 24 hours.
Henan Songshan Heavy Industry Co., Ltd., a state designated manufacturer by Construction Department has a history of over 30 years in machine manufacturing.
We mainly specialize in manufacturing beneficiating , crushing and milling machines, such as Jaw Crushers, Impact Crushers, Double Roll Crushers, Sand Making Machines, Raymond Mills, Superfine Mills, Ball Mills, Flotation Separators, Magnetic Separators, Shaking Tables, and Dryers.
Our products have received the ministerial and provincial honors. Due to the high quality and perfect after sales service, our products have won trust and good comments from our customers and taken the lead in the machinery fields.
Company's certificate
Customer visiting
Please don’t hesitate to inform us:
1.What's kind of your raw material?
2.What's your raw stone size?
3.What's the capacity ? (T/H)
4.What's the final stone size request?
5. Others?
Spare parts of raymond mill:
Other types of Raymond mill specifications for your reference
Model | 3R1410 | 3R1815 | 3R2615 | 3R2715 | 4R2716 |
Max feeding size(mm) | 5-8 | 15 | 20 | 20 | 15-25 |
Discharge size(mm) | 0.044-0.125 | 0.044-0.125 | 0.044-0.125 | 0.044-0.125 | 0.044-0.125 |
Shift capacity (T) (different material) | 1-10 | 1-15 | 2-25 | 3-30 | 3-30 |
Center shaft speed (r/min) | 280 | 200 | 165 | 165 | 165 |
Inner diameter of the grinding ring (mm) | 405 | 550 | 780 | 830 | 830 |
Diameter of the grinder roller(mm) | 140 | 180 | 260 | 270 | 270 |
Height of the grinder roller(mm) | 100 | 150 | 150 | 150 | 160 |
Main motor(Kw) | Y 160M -6-7.5 | Y 180L -8-11 | Y225S-8-18.5 | Y 225M -8-18.5 | Y 225M -8-22 |
Blower motor(Kw) | Y132S-4-5.5 | Y 132M -4-7.5 | Y 160L -4-15 | Y 180M -4-18.5 | Y 180M -4-18.5 |
Classifier motor(Kw) | Y 190L -6-1.1 | Y 100L -6-1.5 | Y 112M -6-2.2 | Y 112M -6-2.2 | Y 112M -6-2.2 |
Dimension (mm) | 3400*2161* 3246 | 4200*3900* 4300 | 5970*4000* 5000 | 5970*4000* 5200 | 5970*4000* 5200 |
Weight (kg) | 2500 | 2950 | 3800 | 4000 | 4000 |
