Level Measure Ultrasonic Equipment

FOB Price

US$ 1 - 700 / Unit

1 Unit(Min. Order)

Port shenzhen tianjin shanghai beijing erlian

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shaanxi, China		Brand Name	Yunyi
Model Number	ZFD-200C

Packaging Details

ultrasonic equipment
Corrugated cardboard boxes outer and foam paper inner

Product Description

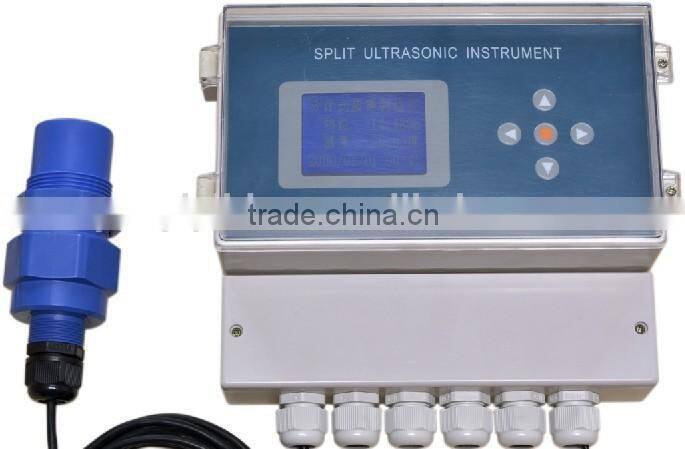

Level measure ultrasonic equipment

Application of ultrasonic equipment :
1. Pharmaceutical manufacturing industry: level control of reaction liquid in the pipeline tank
2. Petroleum and chemical industry: level control of petroleum pipeline / liquid in tank
3. Food industry: Wine, beverage, milk production, storage tank/pipeline liquid level detection and monitoring

Technical Parameter of ultrasonic equipment :
Measure range: 0~5 M, 0~8 M
Blind Area: <0.3 M
Emission angle: 12°
Accuracy: ±0.3%FS
Resolution: 1MM
Temperature compensation: automatic temperature compensation
Working frequancy: 20 KHz~200KHz
Output: 4~20mA;RS232;RS485;
Power supply: AC220V or DC24V
Dimension: 240×184×110mm
Case material: ABS
Mounted size:M48×1.5, M65×1.5, M30×1.5
Cable: Shielded cable 10M (can customized)

Company Profile

Xi'an Yunyi Instrument Co., Ltd.

Xian Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer, Mr Tian has more than 30 years experience on this area, and he is one of the engineers who introduced the Rosemount technology. We are specialized in developing pressure transmitter, etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
