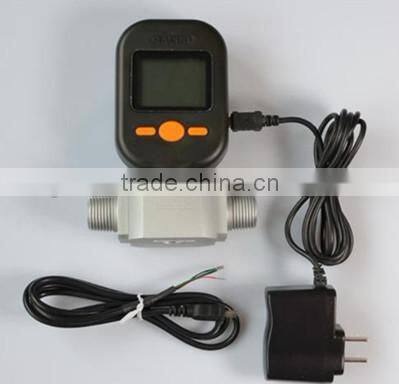

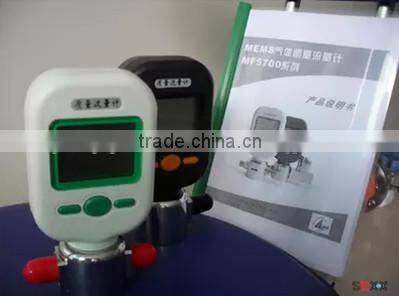

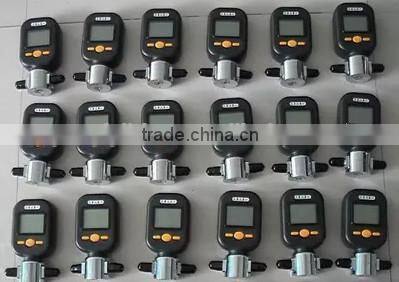

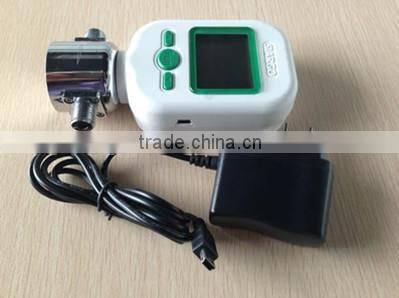

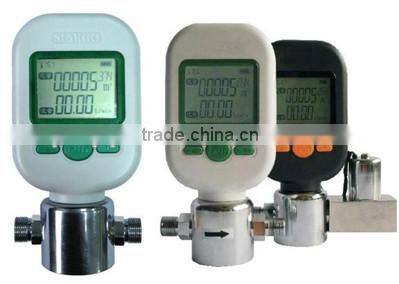

Portable Gas Mass Flow Meter
- beijing tianjin shanghai shenhzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shaanxi, China | Brand Name | Yunyi | |
| Model Number | MF5700 series |
Gas Mass Flow Meter
Corrugated cardboard boxes outer and foam paper inner packing size: 4x5x14cm
Product Description
Gas Mass Flow Meter
General Description of Gas Mass Flow Meter :
MF5700 series mass flow meters feature cost effective ultra low power operating on 4 AA
batteries. The portable design has excellent exchangeable mechanical adaptor, easy data accessible and user programmable capabilities. The internal data storage can also help for purpose flow applications
Features and Applications of Gas Mass Flow Meter :
- Ultra low power by batteries or optional external AC adaptor
- Potable design with rotatable meter head and easy exchangeable mechanical adaptors
- Customizable flow range with over 30:1 turn-down
- Rs485 Modbus protocol ready for networking
- User programmable range alarm for safety and other monitoring/control functionality
- Internal data storage for additional data safety
- Hygienic and oxygen safe copper body for various fluids

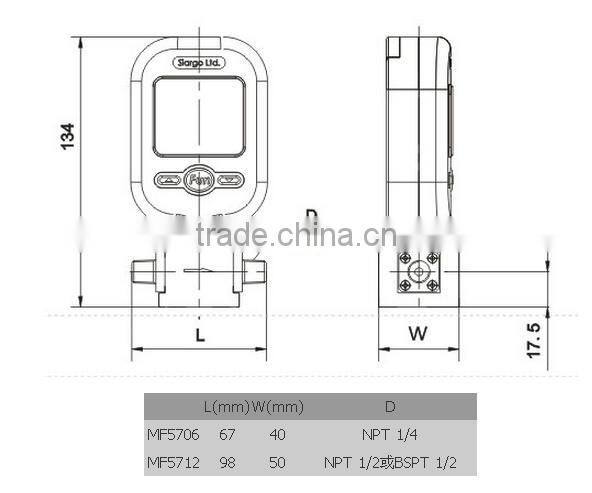

Mechanical Dimensions of Gas Mass Flow Meter :
Specificaiton of Gas Mass Flow Meter :
Parameter | MF5706 | MF5712 | Unit |
Measure range | 0~10,25 | 0~200 | L/Min |
Accuracy | ± (2+0.5FS) | ± (2.5+0.5FS) | % |
Repeatability | 0.5 | % | |
Respond time | ≤ 2 | sec | |
Power supply | 4AA batteries/5-10VDC(with 220 Vac adaptor) |
| |
Power dissipation | ≤ 10 | mW | |
Output | RS485 (Optional) |
| |
Display | LCD |
| |
Display Unit | Instant flow rate: SLPM(L/min);Flow cumulation: NCM(m3) |
| |
Resolution | 0.01 | 0.1 | L/Min |
Keyboard | 3 keys |
| |
Function | Pass word setted; Total set and reset; Alarm function |
| |
Working pressure | ≤ 0.8 | MPa | |
Working temp | -10 ~ +55 | ℃ | |
Pressure loss | ≤ 600 | ≤ 2000 | Pa |
service interval | Battery > 60 | Day | |
Calibration gas | N2,20°C,101.325kPa |
| |
User interface | Mini USB (optional) |
| |
DN | 6mm | 12mm | mm |
Mechanical connection | NPT 1/4 | NPT 1/2 |
|
Weight | 350 | g | |
