Best Sale Digital Peak Pressure Gauge

Standard export package

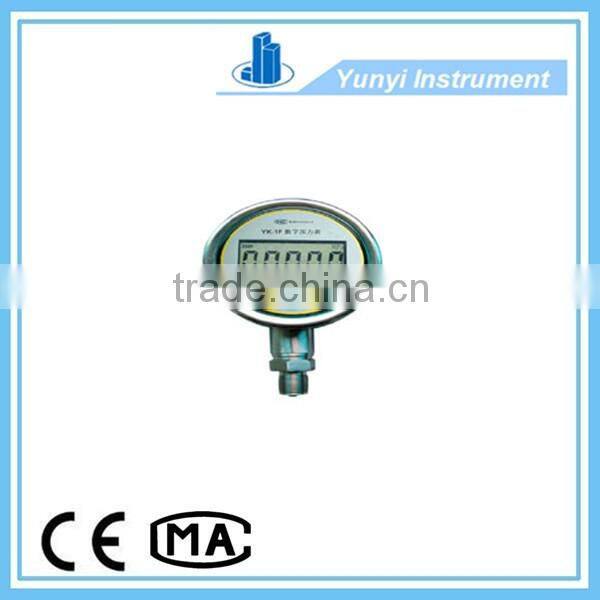

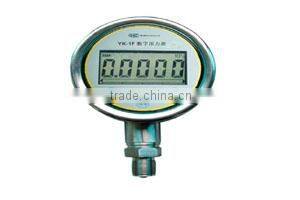

Best sale digital peak pressure gauge

Description of best sale digital peak pressure gauge :

High quality digital peak pressure gauge with two working modes: peak pressure value test mode and digital display pressure gauge modes, it can be switched by pressure MOD button.

Technical data of best sale digital peak pressure gauge :

1. measurement range

 gage pressure:-100kPa~0~1kPa~260MPa

differential:0~500Pa~3.5MPa

absolute pressure:0~10kPa~60MPa

2. output signal :      4~20mA(24VDC two-wire system )  ,1~5V

3 communication mode .:      RS485 ,RS232,MODBUS

4.accuarcy grade:      0.1/0.2/0.5grade

5. stability :      than0.1%FS/year,than0.2%FS/year

6.Acquisition speed: More than 500 times / sec.

7 operating modes: Peak test mode and digital display gauge mode
8 Display: LCD digital display dynamic four (equivalent to 4) plus character tips, you can display kPa, MPa pressure units etc.
9 Overload pressure: 1.5-3 times the range, depending on the measurement range may be
10 scale migration: 3:1
11 Power supply:. 10 ~ 30VDC
12 Load capacity:. RL = U - loop voltage (V) RL - Allowable load resistance (Ω)
13 medium temperature:. -40 ~ 85 ° C
14 Working environment: Temperature: -30 ° C ~ 60 ° C; Humidity: <90%
15 Explosion levels:. ExiaIIBT4, ExdIIBT4
16 Electrical Interface:. M20 × 1.5 (female)
17 Process connection: M20 × 1.5 (male) or according to user requirements
