Pressure Transducer Water With Output Signal

pressure transducer water
Corrugated cardboard boxes outer and foam paper inner

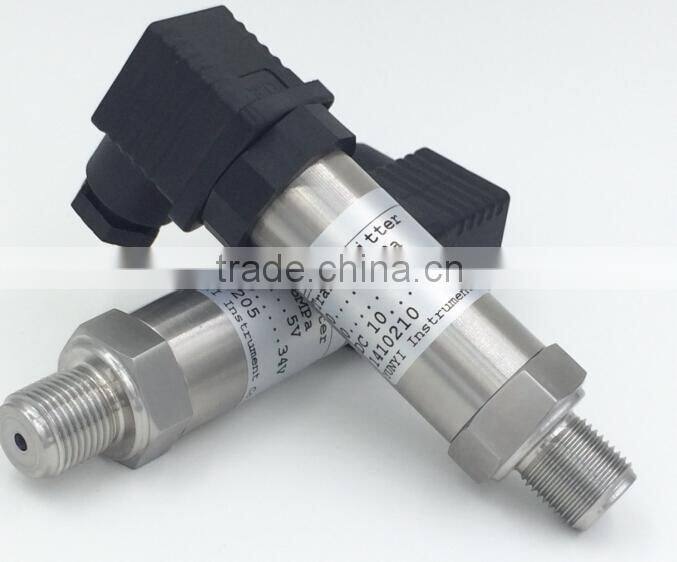

Pressure Transducer Water with output signal


Description of pressure transducer water :

pressure transmitter voltage output uses diffused silicon imported chips, circuit signal isolation amplifier, cutoff frequency interference design (anti-interference ability, lightning) overvoltage protection, current limiting protection, impact and corrosion. Hydraulic pressure sensor housing full seal welded 316 stainless steel, compact, compact, good moisture resistance and excellent media compatibility.

Technical indicators of pressure transducer water :

1 Range: -0.1 ~ 0 ~ 0.001 ~ 100MPa (midscale optional)
2 Overall accuracy: 0.2% FS
3 Pressure type: negative pressure, absolute pressure, gauge pressure, sealing pressure (absolute     pressure plus 140)
4 Measuring media: gas liquids
5 Output signal: 4 ~ 20mA or 0 ~ 5VDC or 0 ~ 10VDC or 1-5VDC
6 Supply voltage: 12 ~ 36VDC
7 Medium temperature: -40 ~ 85 ℃
8 Ambient temperature: room temperature -40 ~ 85 ℃
9 Zero temperature drift: ± 0.01% FS / ℃
10 Range Temperature drift: ± 0.01% FS / ℃
11 Compensation temperature: 0 ~ 70 ℃
12 Safe overload: 150% FS
13 Ultimate Overload: 200% FS
14 Protection: IP65
15 Sampling frequency: ≤2ms
16 Load capacity :( current type) 250 ~ 1425Ω (voltage type) ≥2KΩ sealing rating: IP65
17 Long-term stability: ± 0.1% FS / year
18 Mechanical connection (threaded connection): M20 * 1.5 M18 * 1.5 M16 * 1.5 M16 * 1 M14 * 1.5 M12 * 1.5 M12 * 1.25 M12 * 1 M10 * 1 G1 / 2 G1 / 4 G3 / 8 1 / 4NPT 1 / 2NPT 1 / 8NPT ZG1 / 4 (R1 / 4), etc., other threads can be designed according to customer requirements

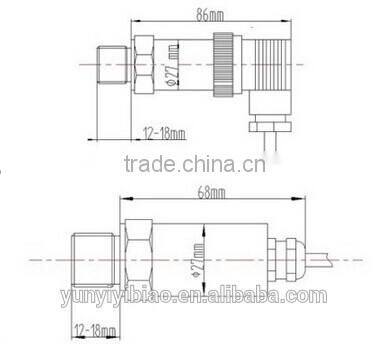

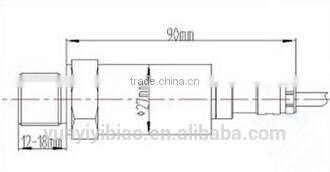

Dimensional Drawings of pressure transducer water :
