Digital Hydraulic Oil Pressure Sensor/mini Pressure Sensor

Standard export package

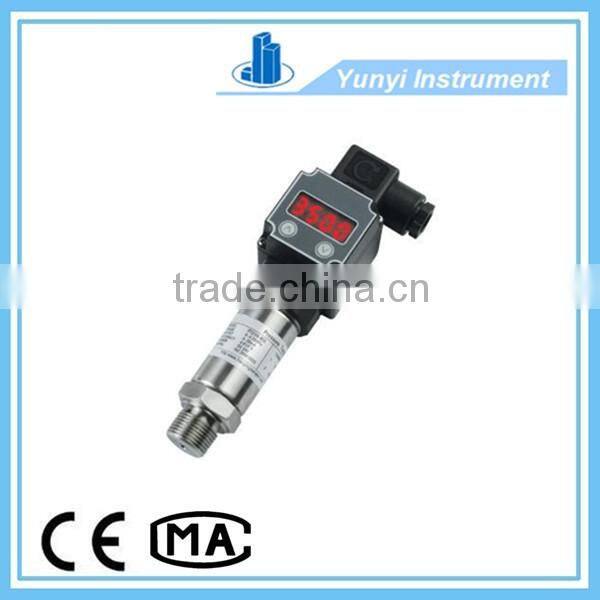

Digital hydraulic oil pressure sensor/mini pressure sensor

Application

Digital hydraulic oil pressure sensor/mini pressure sensor is widely used in petroleum, chemical, electric power, environmental protection, water treatment, automation equipment monitoring pressure, display pressure process control field. With its small size , easy for installation , high accuracy ,
Digital hydraulic oil pressure sensor/mini pressure sensor  is a good choice to meet your requirement in the special field .

Performance parameters

• Reference temperature:25℃
• Measuring range
• Pressure type Gage pressure ,absolute pressure
• Output signal 4~20mA , 0~10V or others
• Display type 3 1/2 LED or LCD display
• Accuracy(%FS) 0.1 0.25 0.5
• Nonlinearity(%FS) ≤0.1 ≤0.25 ≤0.5
• Hysteresis(%FS) ≤0.1 ≤0.25 ≤0.5
• Repeatability(%FS) ≤0.1 ≤0.25 ≤0.5
• Zero drift(%FS/℃) ≤0.02
• Full scale drift(%FS) ≤0.02
• Stability (%FS/Year) ≤0.25
• Damping ( second ) Adjustable
• Operating voltage(V) 12~36V Dc(Standard:24V)
• Operating temperature(℃) -20~85℃
• Overload capacity(%) 300
• Life span more than 9 million times pressure cycle
• Load resistance (Ω) ≤750
• Response time (ms) ≤1
• Media Media Compatible with 316L
• Diaphragm material 316L or Ceramic diaphragm
• Housing material 1Cr18Ni9Ti
• Pressure interface M20*1.5,G1/2,G1/4,1/4NPT or others
• Enclosure rating IP65
• Weight 280g

Feature

• 3 1/2 LED/LCD Display
• Compact Outline, Easy installation
• Strong Compatibility
• Adjustable Pressure Unit
• Applications:
• The oil industry, chemical industry,Electric power.
• Hydraulic pressure system,Pneumatic system
• Energy and Water treatment system.
• Automation equipment
• Industrial process control
