Gauss Tesla Meter

FOB Price

US$ 80 - 150 / Unit

1 Unit(Min. Order)

Port beijing tianjin shanghai shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shaanxi, China	Brand Name	Yunyi
Model Number	SG	Power	Other
Usage	Textile Testing Instrument

Packaging Details

gauss tesla meter
Corrugated cardboard boxes outer and foam paper inner packing size: 4x5x14dm

Product Description

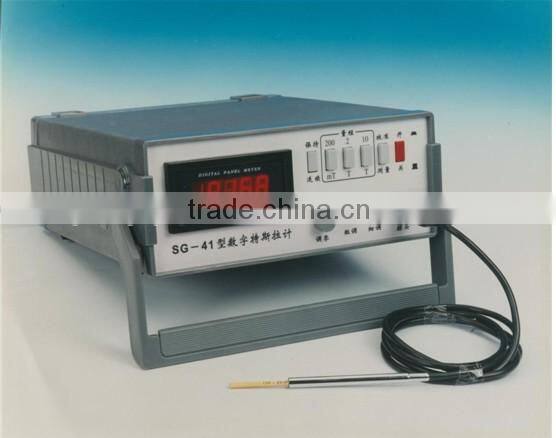

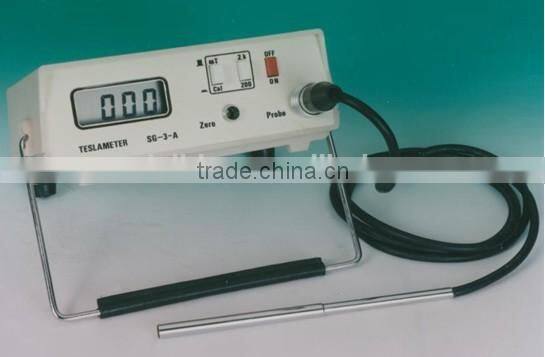

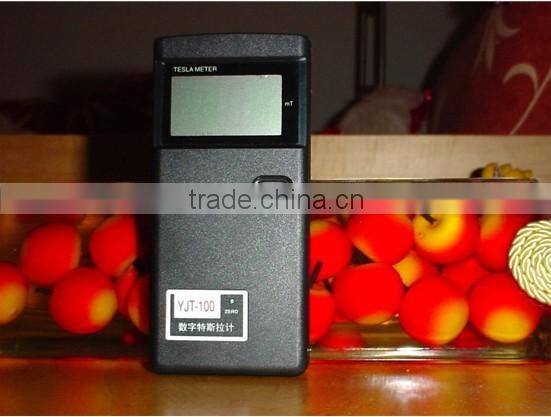

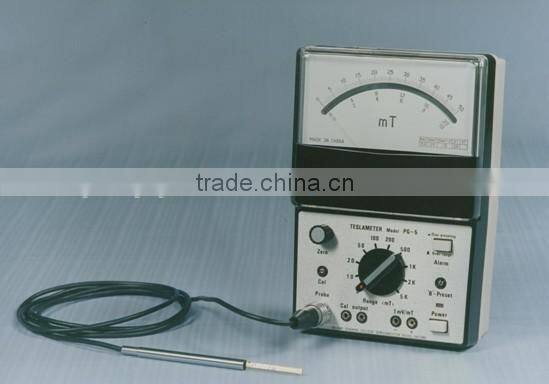

Gauss tesla meter

Description of gauss tesla meter :

Gauss tesla meter is according to the principle of hall effect and the magnetic sensor, scientific and technological achievements in the research of low zero drift, make it has the high stability of the zero and magnetic measurement resolution. For space magnetic field, the speaker magnetic flux leakage, shielding, metal mechanical parts remanence, color picture tube convergence and color purity with circular and check for weak magnetic environment test and measurement.

Technical indicators of gauss tesla meter :

1. The measuring range: 200 mt, 2 t and 10 t three range

2. Display digits: 4 LED digital tube

3. The sampling rate: 2.5 times per second

4. The highest resolution: 10 mu T (Gs) 0.1

5. Accuracy: (under the condition of 20 ℃ + 2 ℃, in 20 mt ~ 1.6 T magnetic induction intensity range) SG - 41 type: accuracy is 0.5% (reading), plus or minus 0.01% (full) SG - 42/43 type: accuracy is 1% (reading), plus or minus 0.01% (full)

6. Noise: two words or less

7. Identify polarity: when shown as "+", probe marked "N", "N" in the face of magnetic field

8. The analog output: 1 mv/mT

9. Overload capacity: the external magnetic field overload does not cause the instrument damage, overload, all digital flash.

10. inch (W * H * D) 260 * 105 * 105 SG - 41/42 / digital tesla's 43 meter/gauss meter has the analog output, recorder or other external oscilloscope, function, measuring instrument, to observe the change of the magnetic field waveform, indirect measurement of ac magnetic field
