Good Performance Dispensing Peristaltic Pump
Negotiable
/ Set
1 Set(Min. Order)
- Tianjin & Shanghai & Shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | Longer | |
| Model Number | WT600-1F | Theory | Other, Peristaltic Pump | |
| Structure | Other, Peristaltic Dosing Pump | Usage | Other, Peristaltic Dosing Pump | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, Electric | Pressure | Other, High Flow Rate | |
| Application | Other, Peristaltic Dosing Pump |
Product Description
Good Performance Dispensing Peristaltic Pump
Product Description
Applicable peristaltic pump heads for WT600-1F are YZ1515X, YZ2515X, YZII15, YZII25, KZ25, DMD25 and DG15-24 . The pump delivers flow rates from 0.7-6000 mL/min and dispensing volumn is from 0.1 mL to 99.9 L. Combining 128*32 LCD display with membrane keypad and rotary encoded switch makes the operation easy and prompt. The speed can be adjusted manually or automatically through external control interface.
Specification:
- Flow rates: 0.7 to 6000 mL / min
- Dispensing volume: 0.1 mL to 99.9 L
- Speed: 10 to 600 rpm
- Copy number: 0 to 9999
- Pause time : 0.1 s to 99.9 min
- Back suction: 0 to 9.9 revolution
- Flow rates calibrating time: 0.5-30 min
- External control: star t/stop control, direction control, flow rates control (0 - 5V ,0 - 10V ,
- 4 - 20 mA , 0 - 10KHz optional )
- Output interface: star t/stop, direction output and 0 - 10 KHz frequency output
- Communication interface: RS 485
- Power: AC 176 - 264V, 50/60 Hz
- Power consumption: < 140 W
- Operating condition: Temperature 0 to 40°C, relative humidity < 80%
- Dimensions (L × W × H): 285 × 207 × 180 (mm)
- Drive weight: 5.2 kg
- IP rating: IP 31
Features:
- Acceptable pump heads: YZ1515X, YZ2515X, YZII15, YZII25, DG15-24, KZ25, DMD25
- Back suction function: In dispensing mode, the pump runs reversely after finishing one filling operation to prevent the liquid from dripping
- Operating mode: Membrane keypad and rotary encoded switch
- Speed control: The speed can be adjusted manually or automatically through external control
- Display: LCD displays current running status and parameters
- Prime key: For fast filling and emptying
- Memory function: Storing the running parameters automatically
- Calibration function: The flow rates and the dispensing volume can be calibrated to increase the accuracy
Parameters:

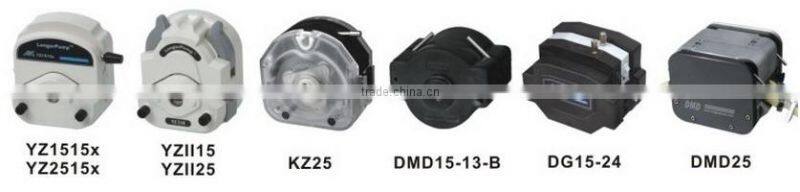

Suitable Pump Head:
Packaging & Shipping
Protective Box & Carton
