Home > Products > Geological Instrument > Automatic constant speed JCH-3 Winch Controller
Automatic constant speed JCH-3 Winch Controller
- qingdao
- T/T Credit Card PayPal
You May Like
-
JGSB-1 Portable Engineering System for manually winch
-
High reliability JGS-1B Intelligent Engineering Logging System
-
High reliability JGS-3 Integrated Digital Logging System
-
high efficiency DZ-2 Rectifier Power Source
-
DJF-2 High Power Direct Current IP Transmitter with regular current storage
-
high efficiency DJS-9 Direct Current IP Receiver
Product Details
Place of Origin | Chongqing, China | Brand Name | BN | |
Model Number | JCH-3 | Power | Electronic | |
Usage | Auto Testing Machine |
Product Description

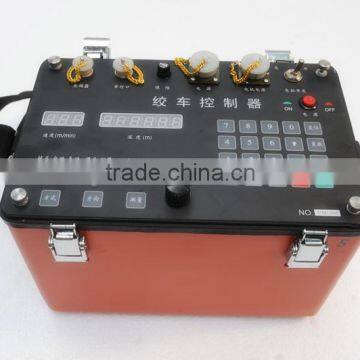

Automatic constant speed JCH-3 Winch Controller
JCH-3 Winch Controller
l Main features
l Advanced AC variable-frequencyregulating speed technology
l Automatic constant speed and manual speed control, automatic overload protection
l Automatically calculate the depth, self-compensate depth error
l Self-locking function while winch ascending and descending
l Steady in velocity without jitter in full speed range
Main Technical Specifications
Velocity Range | 1~30m/min |
Constant Velocity Range | 0.5~20m/min, error ±10% |
Depth Range | 0~9999.99 meter, Error ≤±0.4‰ |
Power Supply | AC220V±10% 50Hz ±5% |
Continuous working time | ≤24 hours |
Deep Plus Equivalent | 0.25mm/plus |
Working Temperature | -10℃~ +70℃ |
Volume | 305*200*220mm |
Weight | <3kg |
Winch series
Index/Name | 3000m Frequency conversion winch | 2000m Frequency conversion winch | 1000m Frequency conversion winch | 500m manually winch | 300m
|
Type | JCH-3000 | JCH-2000 | JCH-1000 | JCW-500 | JCS-300 |
Dimension(mm) | 940*800*720 | 920*680*700 | 710*620*670 | 540*400*380 | 560*490*360 |
Weight(net) | 150kg | 120kg | 110kg | 18kg | 25kg |
Motor Power | 2.2kw | 1.5kw | 1.1kw | manually | manually |
Encoder Plus | 4000/ round | 4000/ round | 4000/ round |
| 4000/round |
Round Length(m) (diameter4.65mm) | 3100 | 2200 | 1200 | 700 | 360 |
370(Φ7 rubber cable) | |||||
Collecting ring | 6 cores | 6 cores | 6 cores | 6 cores | 6 cores |
