US Type / EN818 / DIN766 Steel Link Chain Heavy Duty Tow Chain
- Qingdao China
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | QLLT | |
| Model Number | QL-HC | Structure | Welded Chain | |
| Function | Drag Chain | Material | Alloy | |
| Standard or Nonstandard | Standard |
Product Description

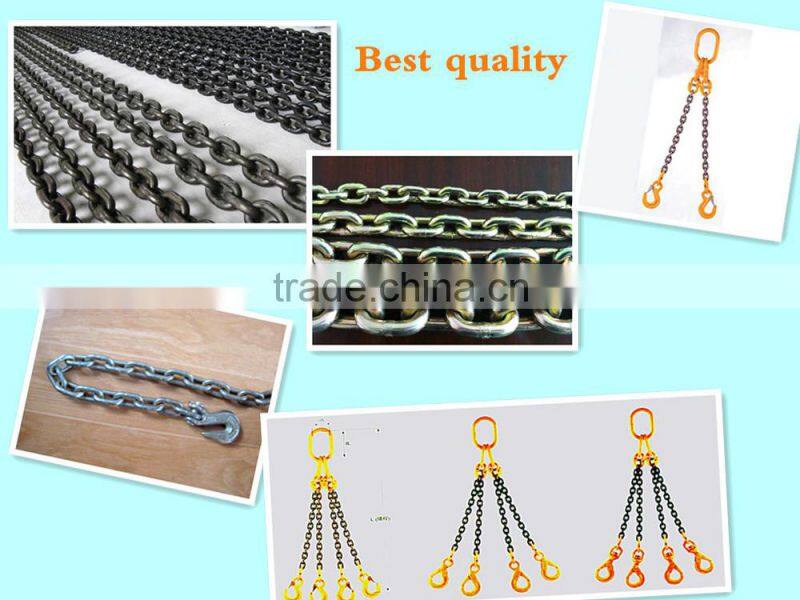

US type / EN818 / DIN766 steel link chain heavy duty tow chain
1) Class: tow chain
2) Surface treatment: Self color, black oxide, electro galvanized, black painted etc.
3) Material: 20Mn2, 25Mnv, 23MnNiMoCr54
4) Standard: National Standard (GB/T20947-2007), International Standard (ISO3077-2001), European Standard (EN818), AS/NZS Standard
Basic diameter(mm) | SWL(t) | Minimum breaking load(KN) | Weight Kg/m | ||
Chain diameter(d) | Inside width(B) | Pitch(P) | |||
φ6 | 8.4 | 18 | 0.6 | 35.4 | 0.9 |
φ8 | 10 | 24 | 1 | 63.3 | 1.5 |
φ10 | 12.5 | 30 | 1.5 | 99 | 2.3 |
φ12 | 15 | 42 | 3 | 141.3 | 3.1 |
φ14 | 18 | 42 | 4 | 191 | 4.6 |
φ14 | 18 | 50 | 4 | 191 | 4.2 |
φ16 | 20 | 48 | 5 | 251.7 | 5.9 |
φ16 | 20 | 56 | 5 | 251.7 | 5.5 |
φ18 | 23 | 54 | 5.5 | 320.5 | 7.5 |
φ18 | 23 | 64 | 5.5 | 320.5 | 6.9 |
φ20 | 25 | 60 | 6.5 | 394.7 | 9.2 |
φ20 | 25 | 68 | 6.5 | 394.7 | 8.7 |
φ22 | 28 | 68 | 8 | 478 | 11 |
φ22 | 28 | 80 | 8 | 478 | 10.3 |
φ24 | 30 | 86 | 10 | 568 | 12.4 |
φ24 | 30 | 92 | 10 | 568 | 12 |
φ26 | 32 | 92 | 12 | 556 | 14.5 |
φ30 | 36 | 104 | 17 | 735 | 20.9 |
φ30 | 38 | 108 | 17 | 735 | 19.3 |
φ34 | 42 | 126 | 22 | 937 | 24.4 |
φ36 | 44 | 126 | 25 | 1050 | 27.8 |
φ36 | 52 | 145 | 25 | 1050 | 27 |
φ38 | 52 | 126 | 28 | 1160 | 32.3 |
φ42 | 64 | 145 | 35 | 1400 | 39.4 |
φ46 | 72 | 158 | 42 | 1680 | 47.5 |
φ50 | 72 | 175 | 50 | 1960 | 55 |
Plywood case,woven bag ,steel drum , ton bag /pallet
1). Good quality
We believe quality is the base of long-time business cooperation. so we have strictly quality control system to make sure our goods matching customer's standard. All the products will be strictly inspected before by SGS team.
2). Quick response
We think quick response to your question and all requirement is very very important for your business.
3). Competitive price
We have our own factory and long-term cooperating suppliers, that's why we can give the most competitive prices.
Shandong province Xintai City Qiangli Chain Co., Ltd was founded in 1998, has nearly 20 years of history. The
registered capital 5 billion RMB, is a professional company of production and sales cirque chain .
Our Company has strong technological power, complete testing equipment,and the domestic advanced level of
chain design development and process control means. Products are widely used in coal mine, cement,
Metallurgy, hoisting, ship, boiler slag, greening and other industries.
