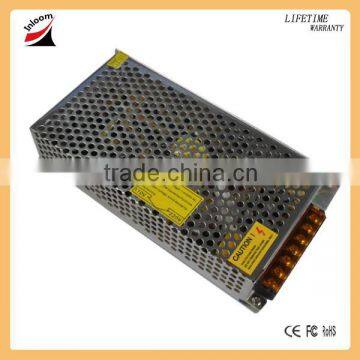

5v 12a 60w constant voltage LED power supply for LED strips,display with CE,ROHS approved

FOB Price

USD $3 - $16 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

5v 12a 60w constant voltage LED power supply for LED strips,display with CE,ROHS approved

Model		S-60-5	S-60-12	S-60-24	S-60-36	S-60-48
OUTPUT	DC output voltage	5V	12V	24V	36V	48V
	Rated output current	12	5	2.5	1.67	1.25
	Wave and noise	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
	Intet stability	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	Load stability	±1%	±1%	±0.5%	±0.5%	±0.5%
	Efficiency	80%	81%	83%	83%	83%
INPUT	AC voltage range	85~264VAC 47~63Hz full range of input or input select by switch
	AC inrush current	Cold-start current 30A/250V
PROTECTION	Overload	Max.150% (Fold back current limiting, recover automatically after problems removal)
	Over voltage	Max.135% (Hiccup mode, recovers automatically after faulty problems removal)
	Short circuit	Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT	Setup rise hold up time	100ms 60ms/230VAC at full load
	Withstand voltage	I/P-O/P: 3KVAC, IP-FG:1.5KVAC, DC-FG: 500VAC
	Isolation resistance	Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ
	Working temperature and humidity	-10~+50°C
	Store temperature and humidity	-20~+85°C, 10~95%RH
OTHER	Overall dimension	1107835mm
	Weight	0.25KG
CERTIFICATE	CE EMC Authenticate	EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008
		EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009
	EMC CE LVD Authenticate	EN61347-1:2008T A1:2001 EN61347-2-13:2006
		EN60950-1:2006+A11:2009+A1:2010+A12:2001
	ROHS Authenticate	EPA3050B:1996 EN1122B:2001 EPA3052:1996 EPA3060A:1996
		EPA7196A:1992 EPA3540C:1996 EPA8270D:2007 IEC62321:2008

Packaging & Shipping

inter white box then outer carton

delivery after receive client payment 2-25 days.
