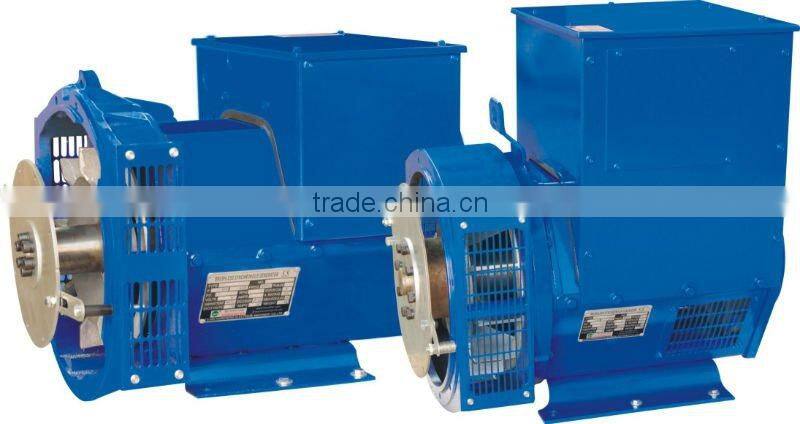

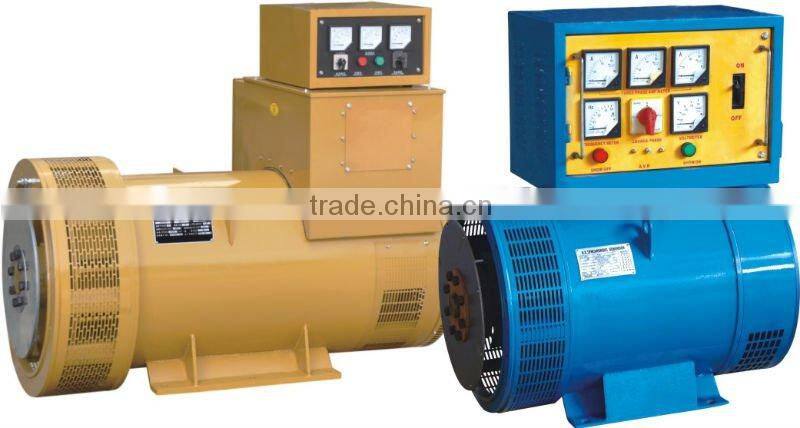

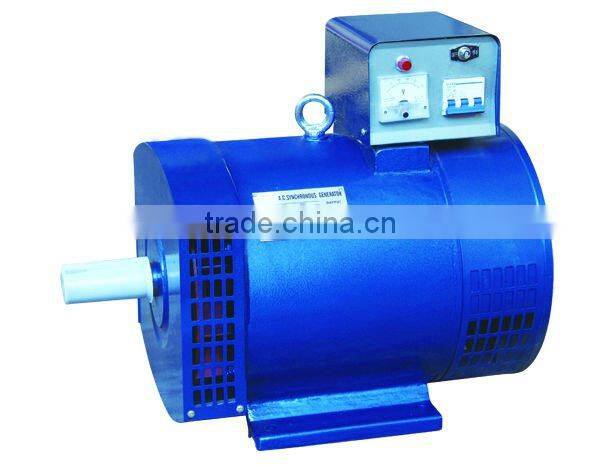

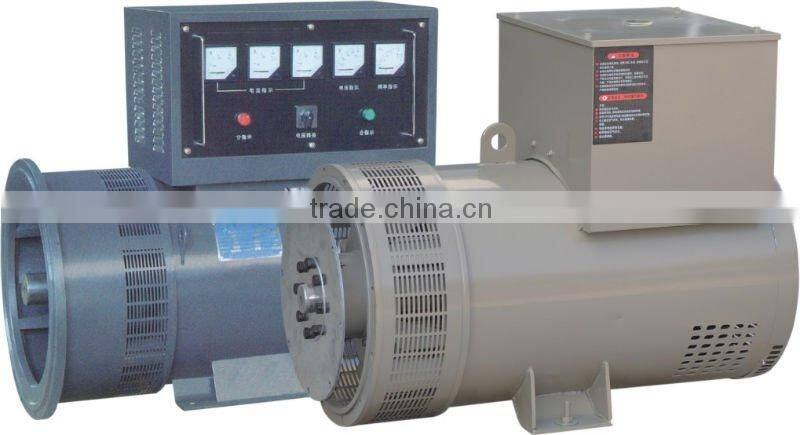

Engine Alternators STC/ST Series

Good Price STC series Three-phase AC AlternatorsThree-phase
A.C.synchronou
For lighting .
Can be reserved as emergence power source.

Introduction:

1)STC series generators are used in town, countryside, worksites, villages and pastures as electric power source for lighting purpose and three phase AC power supply, it can also be reserved as emergence power source.

2)The generators are drip-proof with rotary field type, IP23,Insulation Class:B or F, adopting harmonic excitation system, safe and reliable using, easy operation and maintenance.

 3)The generators are three-phase, four-wire type, adopting star connection with neutral point,. The rated line voltage is 400V, phase voltage 230V, frequency 50Hz. Power factor 0.8(lag).We can provide 60 Hz and the other voltages generator according the customers request.

4)They can be coupled with a prime mover directly or through v-belt making right or reverse continuous rotation at the rated speed. When the rotation speed of prime mover changes 3% or so and load varies in the range of 0~100% Cosφ0.8~1.0, the generators offer constant voltage, when sudden change (increase or deorease) of load, the generator will soon retum to their normal working state, at the same time, without any starting device the generator can directly start an unloaded squirrel cage induction motor.

5)The generators are made as per standard JB/T8981-1999. And in conformity to IEC34-1.

Environment Conditions:

Under the following environment,the  generator could run continuously:

1.Altitude: not exceed 1000m.

2.Cooling air temperature: 258~313K(-15~40).

3.Relative air humidity :not exceed 90%.
