API 5000PSI drilling rig hose with factory price
- TIANJIN QINGDAO
- T/T
You May Like
-
High Pressure Application Drilling rubber Hose for oil industry
-
High quality steel wire spiraled rotary drilling hose 6SP used in oilfield from china
-
High quality High Pressure Hydraulic Drilling rubber hose
-
rubber and product
-
Various size rubber sealing for seal
-
Consolidation coal hole sealing device
Product Details
Place of Origin | Hebei, China | Brand Name | shuangxu | |
Model Number | API |
Product Description

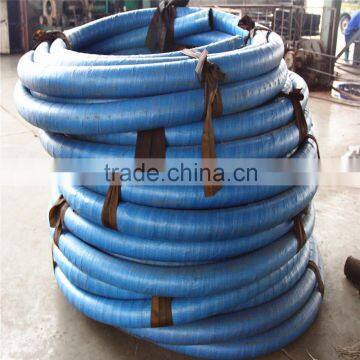

API 5000PSI drilling rig hose with factory price
Applicability:
Commonly used in rotary drilling service as flexible connectors of mud manifold to transfer water-base mud and/or oil-base mud at high pressure in large volumes
Temperature Range:-30°C~82°C, or manufactured upon customers' requirements
Hose Lining:
Principally NBR constructed, featuring oil-resistant, abrasion-resistant, acid & alkali resistant
Hose Reinforcement:
2~8 layers spiraled by single high-strength steel wire, and rubber as a binder to make the layers into one complete and sound construction
Hose Cover:
Primarily CR fabricated, featuring oil-resistant, abrasion-resistant, weatherproof and anti-ageing
Coupling Type:
LP (Line Pipe Thread) and TBG (Tubing Thread) of API Spec 5B
Integral type union joint and flange joint
Particular types upon customers'specific requirements
Reference Standard: API Spec 7K,ISO 6807
SPECIFICATION AND TECHNICAL DATA
Grade A
ID | OD | W.P. | T.P. | Min. bending radius,mm | Weight | Coupling Thread | ||||||
mm | in | mm | in | MPa | psi | MPa | psi | mm | in | Kg/m | Ib/m | |
38 | 1-1/2 | 50.5 | 1.988 | 11 | 1600 | 22 | 3200 | 560 | 22.05 | 1.91 | 4.21 | 23/8TBG,API |
51 | 2 | 67.8 | 2.670 | 11 | 1600 | 22 | 3200 | 900 | 35.43 | 3.01 | 6.64 | 23/8TBG,API |
63.5 | 2-1/2 | 81.2 | 3.197 | 11 | 1600 | 22 | 3200 | 1200 | 47.24 | 4.12 | 9.08 | 27/8TBG,API |
Grade B
ID | OD | W.P. | T.P. | Min. bending radius,mm | Weight | Coupling Thread | ||||||
mm | in | mm | in | MPa | psi | MPa | psi | mm | in | Kg/m | Ib/m | |
38 | 1-1/2 | 51 | 2.0 | 14 | 2000 | 28 | 4000 | 560 | 22.04 | 1.99 | 3.387 | 23/8TBG,API |
51 | 2 | 68.3 | 2.69 | 14 | 2000 | 28 | 4000 | 900 | 35.43 | 3.25 | 7.165 | 23/8TBG,API |
63.5 | 2-1/2 | 81.9 | 3.19 | 14 | 2000 | 28 | 4000 | 1200 | 47.24 | 4.19 | 9.237 | 27/8TBG,API |
76 | 3 | 99.8 | 3.93 | 14 | 2000 | 28 | 4000 | 1200 | 47.24 | 8.02 | 17.68 | API(T)M95 |
102 | 4 | 127.7 | 5.03 | 14 | 2000 | 28 | 4000 | 1400 | 55.12 | 11.20 | 24.69 | API(T)M120 |
127 | 5 | 152.4 | 6.0 | 14 | 2000 | 28 | 4000 | 1500 | 59.06 | 14.90 | 32.85 | API(T) |
152 | 6 | 184.1 | 7.24 | 14 | 2000 | 28 | 4000 | 1600 | 62.99 | 30.4 | 67.02 | API(T) |
Grade C
ID | OD | W.P. | T.P. | Min. bending radius,mm | Weight | Coupling Thread | ||||||
mm | in | mm | in | MPa | psi | MPa | psi | mm | in | Kg/m | lb/m | |
38 | 1-1/2 | 58 | 2.283 | 28 | 4000 | 56 | 8000 | 550 | 21.65 | 3.7 | 8.157 | 23/8TBG,API |
51 | 2 | 73.9 | 2.909 | 28 | 4000 | 56 | 8000 | 900 | 35.43 | 5.85 | 12.897 | 23/8TBG,API |
63.5 | 2-1/2 | 87 | 3.425 | 28 | 4000 | 56 | 8000 | 1100 | 43.31 | 7.01 | 15.454 | 27/8TBG,API |
76 | 3 | 108.2 | 4.260 | 28 | 4000 | 56 | 8000 | 1100 | 43.31 | 14.21 | 31.327 | API(T)M95 |
89 | 3-1/2 | 121.9 | 4.799 | 28 | 4000 | 56 | 8000 | 1200 | 47.24 | 17.02 | 37.522 | API(T)M120 |
102 | 4 | 138.1 | 5.437 | 28 | 4000 | 56 | 8000 | 1300 | 51.18 | 21.31 | 46.98 | API(T) |
127 | 5 | 170.2 | 6.701 | 28 | 4000 | 56 | 8000 | 1400 | 55.12 | 26.01 | 57.342 | API(T) |
152 | 6 | 195.1 | 7.681 | 28 | 4000 | 56 | 8000 | 1600 | 62.99 | 44.03 | 97.069 | API(T) |
Grade D
ID | OD | W.P. | T.P. | Min. bending radius,mm | Weight | Coupling Thread | ||||||
mm | in | mm | in | MPa | psi | MPa | psi | mm | in | Kg/m | Ib/m | |
51 | 2 | 77.8 | 3.063 | 35 | 5000 | 70 | 10000 | 900 | 35.43 | 8.10 | 17.857 | 23/8TBG,API |
63.5 | 2-1/2 | 93.8 | 3.693 | 35 | 5000 | 70 | 10000 | 1100 | 43.31 | 12.30 | 27.117 | 27/8TBG,API |
76 | 3 | 109.5 | 4.311 | 35 | 5000 | 70 | 10000 | 1100 | 43.31 | 14.51 | 31.989 | API(T)M95 |
89 | 3-1/2 | 132.8 | 5.228 | 35 | 5000 | 70 | 10000 | 1200 | 47.24 | 27.34 | 60.274 | API(T) |
102 | 4 | 146.8 | 5.78 | 35 | 5000 | 70 | 10000 | 1300 | 51.18 | 30.59 | 67.439 | API(T)M120 |
Grade E
ID | OD | W.P. | T.P. | Min. bending radius,mm | Weight | Coupling Thread | ||||||
mm | in | mm | in | MPa | psi | MPa | psi | mm | in | Kg/m | Ib/m | |
51 | 2 | 79.5 | 3.130 | 52 | 7500 | 104 | 15000 | 900 | 35.43 | 10.10 | 22.266 | 23/8TBG,API |
63.5 | 2-1/2 | 101.1 | 3.980 | 52 | 7500 | 104 | 15000 | 1100 | 43.31 | 16.51 | 36.398 | 27/8TBG,API |
76 | 3 | 119.9 | 4.720 | 52 | 7500 | 104 | 15000 | 1100 | 43.31 | 24.13 | 53.197 | API(T) |
102 | 4 | 156.3 | 6.154 | 52 | 7500 | 104 | 15000 | 1600 | 62.992 | 46.64 | 102.82 | API(T)M120 |
Grade F
ID | OD | W.P. | T.P. | Min. bending radius,mm | Weight | |||||
mm | in | mm | in | MPa | psi | mm | in | Kg/m | Ib/m | |
51 | 2 | 82.8 | 3.26 | 70 | 10000 | 900 | 35.43 | 11.31 | 24.912 | 23/8TBG,API |
63.5 | 2-1/2 | 103.5 | 4.07 | 70 | 10000 | 1100 | 43.31 | 19.31 | 42.571 | 27/8TBG,API |
76 | 3 | 120.1 | 4.73 | 70 | 10000 | 1100 | 43.31 | 24.13 | 53.197 | API(T) |
102 | 4 | 166.2 | 6.543 | 70 | 10000 | 1800 | 70.87 | 52.86 | 116.535 | API(T) |
Packing details: woven bag packing or according to customer's requirment
Delivery detail: within 15 days after receive the deposit
Hebei Lianxing Rubber and Plastic Co., Ltd. is located in Hengde Industrial Park, at the junction of Shandong and Hebei. We currently employ 89 people, including 3 managers, 30 engineering technicians (including 3 senior engineers and 16 engineers). Our company covers an area of 51000m2, including 17000 m2 for work shops. Now we have a total assets of 60000000 yuan, including 40000000 yuan in fixed assets. We are an innovative company integrating research and development, production, technology innovation and sales.
We have more than 100 sets of safety production equipment including knitting machine, winding machine, flat vulcanizing machine, rubber and plastic pressure kneading machine, vulcameter without rotator, tensile testing machine, testing equipment, etc.
The main products of our company are: high pressure wire braided hose, super high pressure wire spirally-wound hose, hydraulic hose, coal mine hydraulic support hose assembly, expansion hose (water injection hole sealing device), drilling hose, hose connectors, wear-resistant sand blast hose, cloth inserted hose, heat-resistant steam hose, rubber water hose, large diameter hose, metal hose and various kinds of hose assembly.
1. Are you a manufacturer or trading company?
We are a professional hydraulic hose fittings manufacturer with ten years' experience. We have done business with our customers well.
2. What is payment method?
For samples: T/T, western union.
For orders: T/T or L/C.
3. Do you offer free samples?
We can provide free samples and you should pay the freight. After you place an order, we will give back the freight.
4. Do you offer OEM service and can you product as our drawings?
Yes. We offer OEM service. We accept custom design and we have a professional design team who can design products based on your requirements. And we can develop new products according to your samples or drawings.
5. Do you accept our design on boxes?
Yes. We accept custom design on boxes.
6. What's your delivery time?
Generally, we will arrange shipment within 15 days after receiving the deposit. If urgent, we can also meet your requirement.
7. Is your price higher than other companies?
Since we have been a professional manufacturer for many years, we can control our quality and costs well. So our prices are very competitive. And we dedicate to establishing long-term and friendly relationships with all the customers.
8. How do you control the quality?
We will arrange sample confirmation before production. During the production, we have professional QC staffs control the quality and manufacture in accordance to the confirmed sample. We will also guarantee the accuracy of packaging and send you shipping sample. Welcome to our factory to inspect.
