Red clay brick machine
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Other, clay,fly ash,coal gangue | Processing | Brick Molding Machine | |
| Method | Vacuum Extruder | Automatic | Yes | |
| Capacity | 8000-30000pcs/hour | Place of Origin | Henan, China | |
| Brand Name | longmen | Model Number | JKY | |
| Voltage | Different size | Power | 15-250kw | |
| Dimension(L*W*H) | Different size | Certification | ISO9001:2008 | |
| Warranty | 1 year |
Product Description

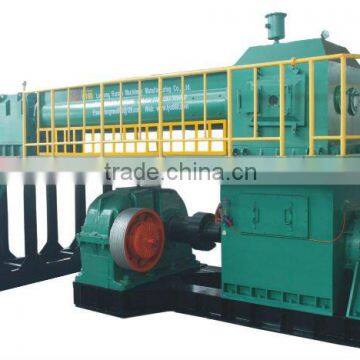

Introduction of automatic JKY series soil brick making machine:
The JKYseries vacuum extruder are our newest product.they have the features as bellows:
1:reasonable design
pact structure
3.simple opetation
4.lower cost and high quality
5.ISO9001:2008 approved
they are applicable forthe production of solid brick,load-bearing perforated brick,and high-rate hollow bricks
with the materials of clay,coal gangue,shale, high-volume fly-ash .urban construction waste,gangue waste,inferior soil.
Brick Making Process:
Service policy:
1. Before sales: 1>the device type
2>for customer training and technical personnel
3>according to customer request, design and manufacture products
4> the company sent engineering and technical personnel to the user scene, planning for the optimal design of the flow field, and the solutions.
2. Medium-sales:1> Acceptance of the product
2> Assist client protocol construction scheme
3. After-sale
On-site training personnel
Appoint special after-sale service staff ,arrived at the scene guide clients installation and commission.
As a professional supplier in China to manufacture clay brick making machine , it is our pleasure to cooperate with customer from all over the world . If you have any comment regarding our brick making machine ,or any technical question in the brick making product line ,please feel free to contact us ,we would love to help you
Technical data:
Item
Data |
Measuring unit | 75/75-4.0 | 70/70-4.0 | 60/60-4.0 | 55/55-3.8 | 50/50-3.0 | 45/45-3.0 | 40/40-2.0 | 35/35-1.5 |
Production capability |
standard brick packs/h | 20000-26000 | 20000-24000 | 18000-22000 | 16000-20000 | 14000-18000 | 12000-16000 | 10000-14000 | 8000-12000 |
Reamer diameter | mm | 750 | 700 | 500 | 500 | 500 | 450 | 400 | 350 |
Extruding pressure | MPa | ≤4.0 | ≤4.0 | ≤4.0 | ≤3.8 | ≤3.0 | ≤2.0 | ≤2.0 | ≤1.5 |
Forming liquid water content | % | 14-16 | 14-16 | 14~20 | 14~20 | 14~20 | 14~20 | 16~22 | 18~22 |
Vacuum | MPa | ≤-0.092 | ≤-0.092 | ≤-0.092 | ≤-0.092 | ≤-0.092 | ≤-0.092 | ≤-0.092 | ≤-0.092 |
Power | Kw | 110/250/15 | 90/220/15 | 75/160~185/15 | 75/132~160/15 | 55~75/110~132/15 | 55/90~110/15 | 45/75~90/15 | 37/55~75/15 |
