Home > Products > Lithium ion batteries packs > deep cycle china cheap lithium lifepo4 12v 20ah battery pack

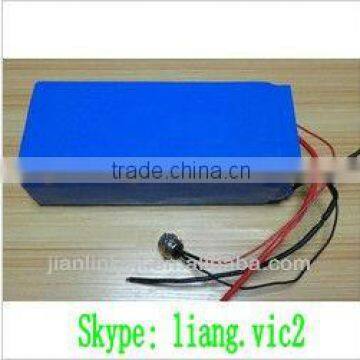

deep cycle china cheap lithium lifepo4 12v 20ah battery pack

FOB Price

USD $120.99 - $140.99 / Piece

4 Pieces(Min.Order)

Supply Ability 1000000 Piece / Pieces per Month
Port shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	JLX-Power
Model Number	JLX-power	Type	Li-Ion
Nominal Voltage	Other, 12v	Size	Other, 8292205mm
Nominal Capacity	20ah

Product Description

Specifications

lifepo4 12V 20Ah li-ion battery pack for UPS / backup energy
1.Longer life.High safety
2.Light weight
3.smaller si

lifepo4 battery 12V 20ah li-ion battery pack for UPS / backup energy

Specifications

No	Item ()	General Parameter	Remark
1	Rated Capaci	(Typ.) 2ah	Standard charge and Standard discharge
1	Rated Capaci		Standard charge and Standard discharge
2	Nominal Voltage	12.8V
3	End of Charge Voltage	14.6V
4	Charge mode	CC,CV
5	Charging current	≤5A
6	Charging cut-off current	0.02C
7	Charging time	≈4h
8	Over-Charge Voltage Protection(cell)	3.9V
9	Over-Charge Voltage Protection(Pack)	15.6V
10	Discharging Current	20A
11	Maximum Continuous Discharging Current	30A

Continuous the table 1

No	Item	General Parameter	Remark
12	Discharge of Peak current	________________
13	Over-disCharge Voltage(cell)	2.0V
14	Over-disCharge Voltage Protection(Pack)	8~10V
15	Over-Current Discharge Protection	15A
16	Short circuit protection	Have
17	Short circuit protection Release	_________________
18	Cell Dimension	length 95mm	Can change
		width 90mm
		height 135m
19	Weight	≈240g
20	Operation Temperature Range	Charge 0~45°C	60±25%R.H. Bare Cell
20	Operation Temperature Range	Discharge -10~60°C	60±25%R.H. Bare Cell
21	Storage Temperature Range	1 month -20°C ~ 45°C	60±25%R.H. at the shipment state
		3 month -20°C ~ 45°C
		1 year -20°C ~ 20°C

No	Item ()	General Parameter	Remark
1	Rated Capaci	(Typ.) 2ah	Standard charge and Standard discharge
1	Rated Capaci		Standard charge and Standard discharge
2	Nominal Voltage	12.8V
3	End of Charge Voltage	14.6V
4	Charge mode	CC,CV
5	Charging current	≤5A
6	Charging cut-off current	0.02C
7	Charging time	≈4h
8	Over-Charge Voltage Protection(cell)	3.9V
9	Over-Charge Voltage Protection(Pack)	15.6V
10	Discharging Current	20A
11	Maximum Continuous Discharging Current	30A

Continuous the table 1

No	Item	General Parameter	Remark
12	Discharge of Peak current	________________
13	Over-disCharge Voltage(cell)	2.0V
14	Over-disCharge Voltage Protection(Pack)	8~10V
15	Over-Current Discharge Protection	15A
16	Short circuit protection	Have
17	Short circuit protection Release	_________________
18	Cell Dimension	length 95mm	Can change
		width 90mm
		height 135m
19	Weight	≈240g
20	Operation Temperature Range	Charge 0~45°C	60±25%R.H. Bare Cell
20	Operation Temperature Range	Discharge -10~60°C	60±25%R.H. Bare Cell
21	Storage Temperature Range	1 month -20°C ~ 45°C	60±25%R.H. at the shipment state
		3 month -20°C ~ 45°C
		1 year -20°C ~ 20°C

Advantage:

1. High energy density

2. High working voltage for single battery cells

3. Pollution-free

4. Long cycle life

5. No memory effect

6. Capacity, resistance, Voltage, platform time consistency is good

7. With short-circuit production function, safe and reliable

8. Factory price& High quality

9. Good consistency, low self discharge

10. Light weight, small size

Features:

1. Longer storage life than NiMH Batteries

2. Light weight and high energy density

3. Installed IC chip will prevent the battery pack from over charge and over discharge.

It helps protect battery chemistry integrity and prolongs battery life.

4. Installed polyswitch will cut off power if battery discharge current more than 6.6Ah

5. Perfect for building up battery pack for medical equipment Back-up or EPS Emergency Power

6. Supply which requires compact size and lighter weight

7. The battery module is wrap by PVC

Shipping

1. We will ship the products within 5-7working days after receipt of payment.

2. We can ship to you by UPS/FEDEX/DHL/TNT/EMS and so on. Other shipping terms can also be arranged according to specific requirements.

3. We are not responsible for any accidents, delays or other issues that are the responsiblility of the shipping service.

Payment

1.We accept T/T , PAYPAL , Western union

2.If you prefer other payment terms,please contact us.

return policy

We provide 2 year warranty

If the item is defective, please notify us within 3 days of delivery.

All items must be returned in their original condition, in order to qualify a refund or a replacement.

Shipping fee and insurance is not refundable.

Items returned after 7 days of delivery are only eligible for repair.
