Ultrasonic Embossing Machine

wooden case

Specifications

Ultrasonic embossing machine(NK-H2012A)

Ultrasonic Multifunctional Lace Sewing Machine, also could be called Handle Towel Lace Machine, ultrasonic sewing machine, ultrasonic embossing machine, ultrasonic embroidery machine, ultrasonic trimming machine, ultrasonic compound machine, ultrasonic stitching machine, ultrasonic heat sealing machine, ultrasonic Velcro splitting machine, ultrasonic magic sticker slitting machine, ultrasonic gauze element bonding machine, ultrasonic curtain sewing machine and ultrasonic semi-automatic non-woven bag making machine.

Technical parameters of Ultrasonic embossing machine

 Mode: NK-H2012A

Power: 1400W/1600W/2000W

Frequency: 20KHZ

Voltage: 50/60HZ 220VAC/10A

Dimensions: 1200 x 550 x 1200mm

Weight: 150KG

Details of the Ultrasonic embossing machine:

I,Summary of Ultrasonic embossing machine

 South Nekon Ultrasonic Handle Towel Lace Machine, also could be called ultrasonic lace machine, ultrasonic embossing machine, which is an efficient sewing and embossing equipment. It mainly used to processing of sewing, welding, cutting, punching and embossing of synthetic fiber or blended fiber etc. The finished products will with better water tightness, high efficiency of production, accessory without thread, smooth section without deckle edge and feel comfortable when touch. South Nekon Ultrasonic lace sewing machine is widely used to industries of clothes, toys, foods, pro-environment nonwovens bags, face masks, respirator (cup type masks, dust masks, disposable non-woven 3 ply face masks, etc)
South Nekon Ultrasonic embossing machine uses the newest ultrasonic technology, is widely used to original imported spare parts of world band, which ensures the machine with advanced technology, reasonable structure, reliable and convenient operation.

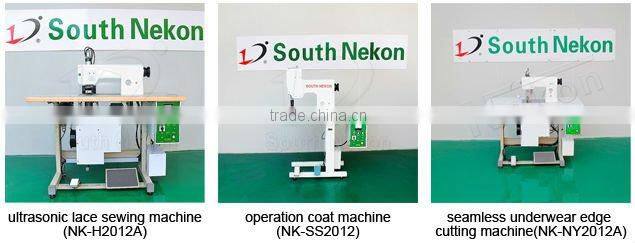

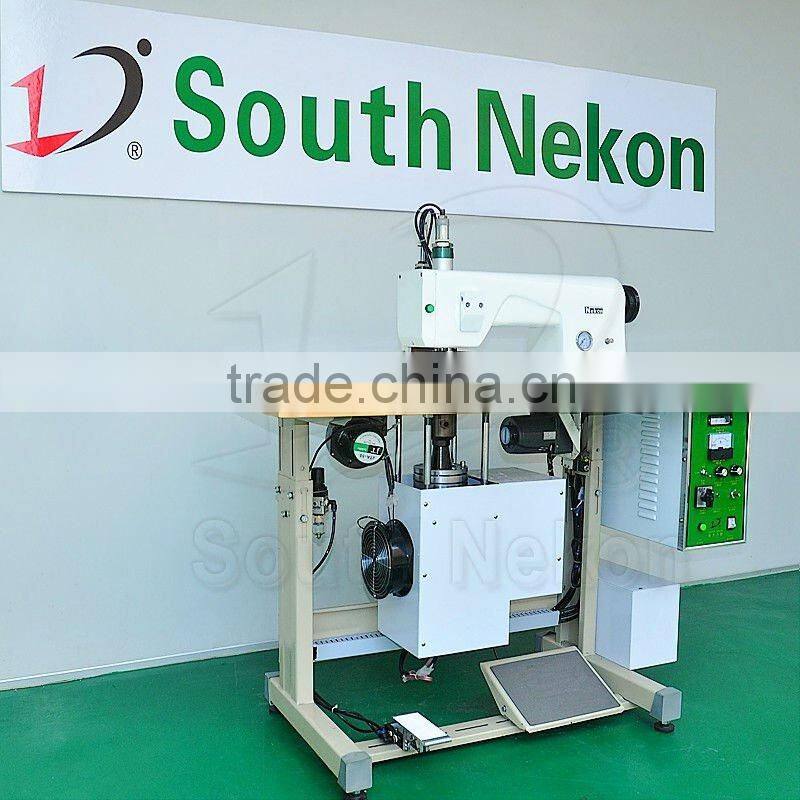

Details of the machine:

II, The suitable materials of Ultrasonic embossing machine

 This Ultrasonic Graning Machine can work with all chemical synthetic fiber materials, or materials contain chemical fiber blending cloth, chemical film(chemical fiber should more than 30%), for instance, Nylon, needlework cloth, non-woven fabrics, TR cloth, Tetoron cloth(Polyester cloth),multilayer cloth, and other coated fabric and coated papers.

Features and Functions of the Ultrasonic embossing machine

 1. Ultrasonic Handle Towel Lace Machine used ultrasonic vibration and steel moulds, the above processing will be finished together with pressure.

2. There’s no fog and spark in produce processing, won’t cause damage to fabric edge, and also can avoid deckle edge.

3. Chang of the ultrasonic cutting die is very easy, and the design of the moulds can also made according to customer’s requirement.

4. Without pre-heating, and continuous operation is possible.

5. Colored paper and gold foil paper be added in order to get the effect of printing and hot stamping.

6. Ultrasonic embossing machine can be combined to one set of equipments in order to sew large width products once, for instance, guilt cover, gingham, etc.

III, Samples of South Nekon ultrasonic Ultrasonic embossing machine

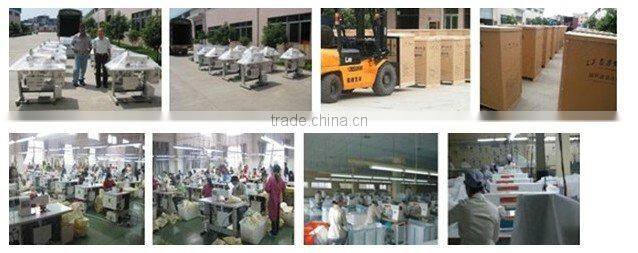

Pictures of loading and using of South Nekon Ultrasonic embossing machine.

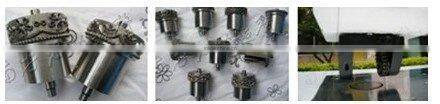

Pictures of ultrasonic moulds and welding/cutting die:

Pictures of Nekon
