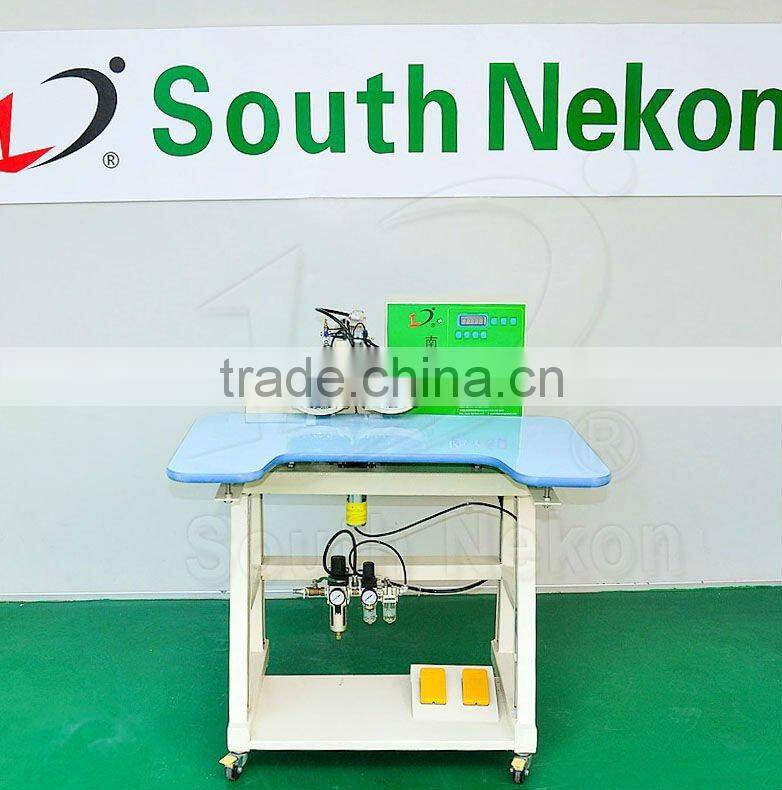

Ultrasonic Heat Fixing Machine

wooden case

Specifications

Company Introduction

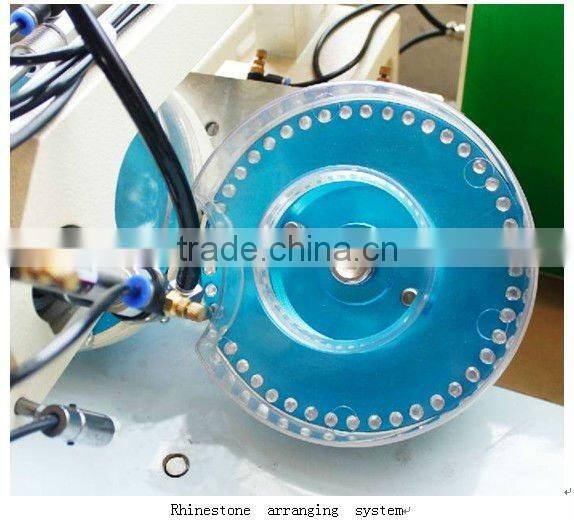

Dongguan South Nekon Machinery CO.,LTD. is the first produce ultrasonic hot-fix machine business in domestic, with incessant research, development and design, now has developed the second generation single and double head hot-fix machine. The fix speed can reache150 pcs per min, it can increase 30% in this line, what`s more, South Nekon has it`s independent design of bead plate acrylic shield, protect the diamonds from scattering in the course of working, avoid of the waste, and save the cost.

Operating principle of ultrasonic heat fixing machine

 Get through the electronic circuit, transform the alternating current 220V/50HZ to 35KHZ,once again transform to mechanical energy by transducer. Ultrasonic`s working principle is press the diamond to the head of the welding head, then the welding head send out mechanical energy, the diamond above melt the hot cement through the mechanical vibration, finally, it bonds to the cloth or the cladding.

Technical Data
1.Frequency: 35KHZ

2.Supply voltage: 220V/(50/60Hz)
3.Power: 1200W

4.Dimensions: 800*600*1100mm

5.Weight: 56kg
6.Air Press: 0.6-0.8 Mps

7.Efficiency:150beads/min

Features and functions

1.This unit can fix beads instantly on the material (velvet, jeans, knitted fabric, PU leather, genuine leather or any other synthetic leather) by ultrasonic.

2.This unit is applied mainly to the hot fix of shoes, underwear, children's wear, T-shirts, embroideries, leathers, handbags, hair ornaments, hats and other decorations.

3.This unit is as efficient as 150 beads/minute.

4.The double-disc hot-fix machine can fix two kinds of beads with two colors,improve the efficiency.

Samples

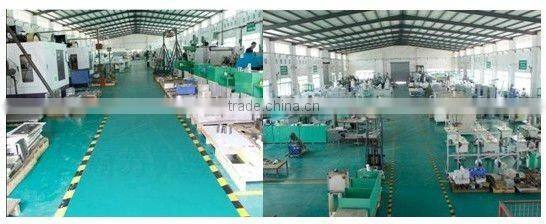

Work Shop

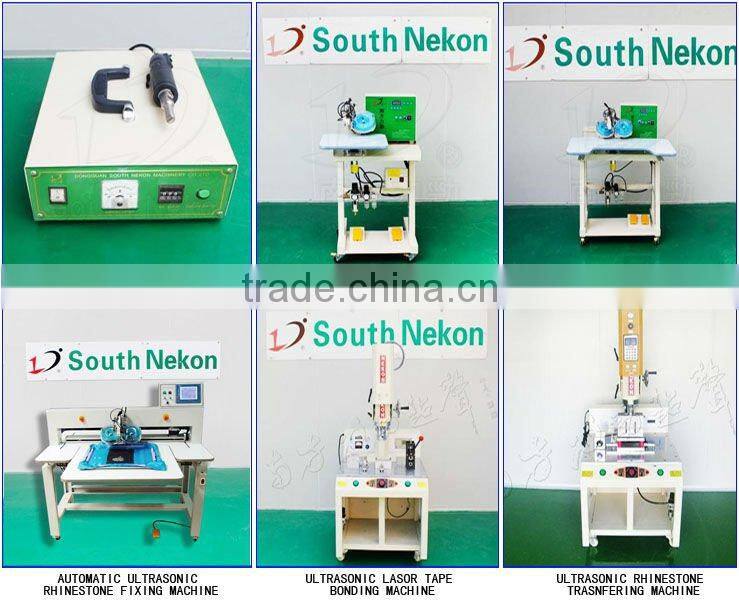

The Ultrasonic Hot-fix Machine of Our Company
