RA-30 PU Spraying Machine

FOB Price

US$ 4,000 - 8,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	RUNNING
Model Number	RA-30		After-sales Service Provided	Engineers available to service machinery overseas

RA-30 PU Spraying Machine used for:
1. Wall insulation;
2. Roof insulation;
3. Water tank insulation etc.

RA-30 PU Spraying Machine

Application:

1. Building wall insulation;

2. Building roof waterproof and insulation;

3. Construction seam filling;

4. Pipeline insulation;

5. Solar water tank insulation;

6. Car roof insulation etc.

Specifications:

Model	RA-30 polyurethane spray foam machine
Standard configuration	Mainframe 1 set
	Self-cleaning spray gun 1 set
	Feeding pump 2 sets
	Heating hose 15m
	Feeding pump hose 2.5m
	Gun hose 1.5m
	Rings and Tools 1 set
Technical Data	The ratio of raw material 1:1(Fixed)
	The viscosity range of raw material 200-1000CPS (Under the operate temperature)
	Max working pressure 20Mpa
	Max fluid temperature 80ºC
	Max output 9kg/min
	Whole power 9000W
	Voltage 2-ph 220V 50Hz/3-ph 380V 50Hz
	Clean mode Self-clean by air
	Max heating hose length 75m
	Pneumatic source 0.8Mpa 1m³/min
	Body size (L×W×H) 600×600×1180mm
	Net weight 140kg

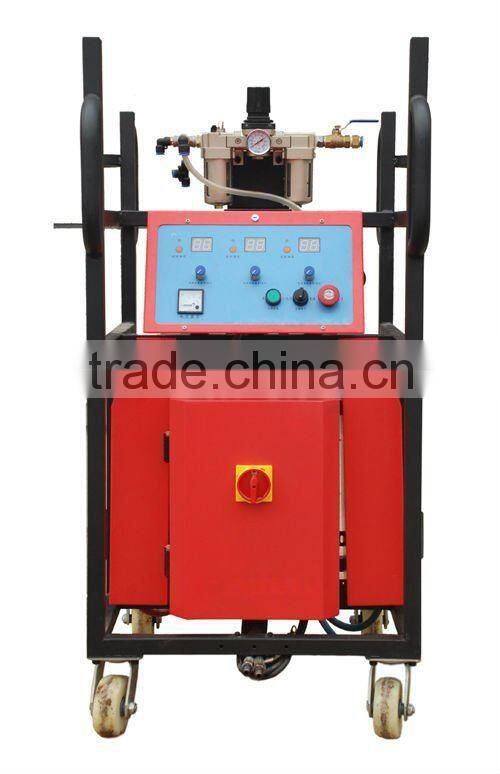

Mainframe

Feeding Pump

Spray Foam Gun

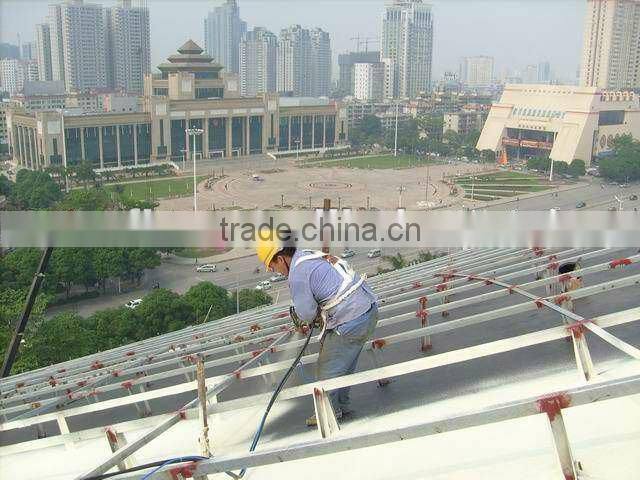

Working
