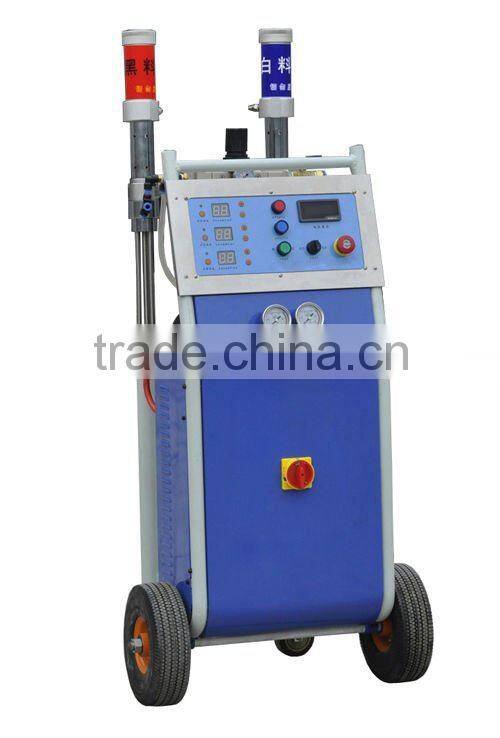

RA-40 Polyurethane Foam Injection Machine
- China Base Port
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | RUNNING | Model Number | RA-40 | |
| Weight | 120kg | Warranty | 12months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
RA-40 Polyurethane Foam Injection Machine used for:1. Wall insulation;
2. Roof insulation;
3. Water tank inslation etc.
RA-40 Polyurethane Foam Injection Machine

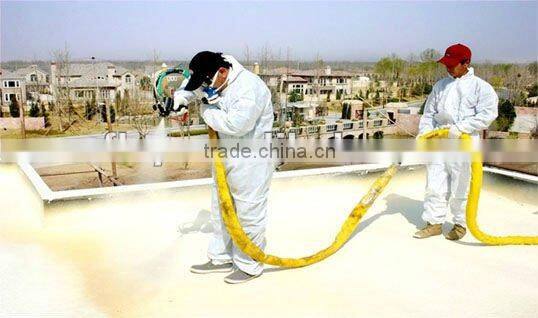

Application:
1. Building wall insulation;
2. Building roof waterproof and insulation;
3. Construction seam filling;
4. Pipeline insulation;
5. Solar water tank insulation;
6. Car roof insulation etc.
Specifications:
Model | RA-40 Polyurethane Foam Injection Machine |
Standard configuration | Mainframe 1 set |
Self-cleaning foaming gun 1 set | |
Feeding pump 2 sets | |
Heating hose 15m | |
Feeding pump hose 2.5m | |
Gun hose 1.5m | |
Rings and Tools 1 set | |
Technical Data | The ratio of raw material 1:1(Fixed) |
The viscosity range of raw material 200-1000CPS (Under the operate temperature) | |
Max working pressure 20Mpa | |
Max fluid temperature 80ºC | |
Max output 9kg/min | |
Whole power 11000W | |
Voltage 2-ph 220V 50Hz/3-ph 380V 50Hz | |
Clean mode Self-clean by air | |
Max heating hose length 90m | |
Pneumatic source 0.9Mpa 1m³/min | |
Body size (L×W×H) 650×600×1300mm | |
Net weight 125kg |
Mainframe
Feeding Pump
Spray Gun
Gun Parts
Working
