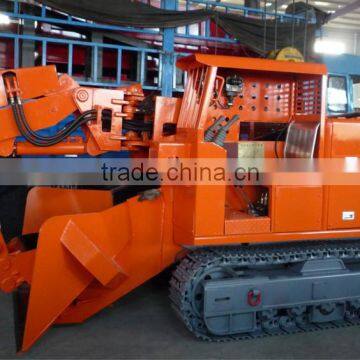

Crawler Mucking Loader for underground mine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	Wanfeng
Model Number	ZWY-100/45L	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Crawler Loader

Product name: Technical data of Crawler Loader small type tracked mining loader on hot sale

Item		Unit	Technical Parameter
Model No.			ZWY-100/45L	ZWY-80/45L	ZWY-60/30L
Machine weight		Kg	12200	11860	6800
Loading capacity		M³/h	100	80	60
			reach boom broken boom(Optional)	reach boom broken boom(Optional)
Digging width		mm	5300 4800	4800 3200	3200
Digging distance		mm	1970 1820	1820 1530	1530
Digging height		mm	3090 2570	2570 2300	2300
Digging depth		mm	600 480	480 320	320
Dumping height		mm	1480~1760(variable)	1470~1646(variable)	1350(variable)
Dumping distance		mm	1700(variable)	1600(variable)	1500(variable)
Driving speed		m/s	0.25±5%	0.25±5%	0.25±5%
Speed of scraper chain		m/min	40	40	34
Scraper chain transportation organization form			single chain single drive	single chain single drive	single chain single drive
Applicable roadway slope		(°)	≤32	≤32	≤32
Maximum working pressure		Mpa	≤32	≤32	≤32
Ground pressure		Mpa	≤0.1	≤0.1	≤0.087
Ground clearance		mm	≤310(can be heighten)	≤310(can be heighten)	≤320(can be heighten)
Total Power		Kw	45	45	30
Operation manner			Hydraulic control	Hydraulic control	Hydraulic control
Conveyor inner width		mm	941(can be widen)	941(can be widen)	900(can be widen)
Maximum material go through size(W×H)		mm	580×710	580×710	480×520
Working arm maximum turning angle		(°)	±55	±55	±55
Dimension(transport position)	Length	mm	8100	7710	6030
	width	mm	1690	1690	1500
	height	mm	2100	1990	1800
Dimension(working position)	length	mm	9700	9222	6500
	width	mm	1690	1690	1500
	height	mm	2310	2247	1900
adaptive tunnel dimension(W×H)		m	≥2.5×2.5	≥2.4×2.4	≥2×2
