PIPE END SCREW CAP
- shanghai
- T/T D/P D/A Credit Card
You May Like
Product Details
| Material | Carbon Steel | Technics | Casting | |
| Type | Cap | Place of Origin | Jiangsu, China | |
| Model Number | ks-20 | Brand Name | ks | |
| Connection | Other, butt welded | Head Code | Other, elliptical |
Product Description
Specifications
pipe end metal screw capstandard or customized
ANSI,ASME,DIN,JIS,BS,GB
size:1/2-72
sch20;sch30;sch40,STD,schSGP.sch80,sch16
PIPE END SCREW CAP
Type of pipe end screw cap
Seal Head is a component of the container welding connected with cylinder. According to the geometry, it can be divided into
spherical or elliptical, dish, spherically dished head, conical head and so on. Among this, spherical head and elliptical head,
dished head and spherically dished head are all referred to as convex head. The seal head are divided into the butt welding
head and socket welding head.
Application of pipe end screw cap
The seal head are used for all kinds of container equipment, such as storage tank, heat exchanger, tower, reaction kettle, boiler and separation equipment, etc.
Structural form of pipe end cap

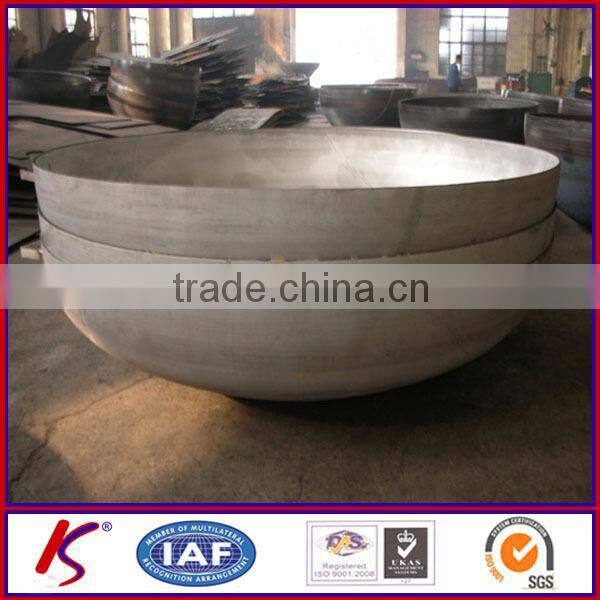

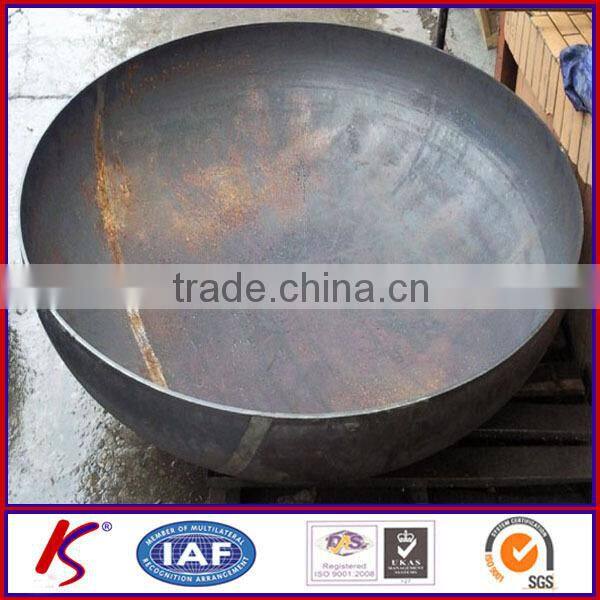

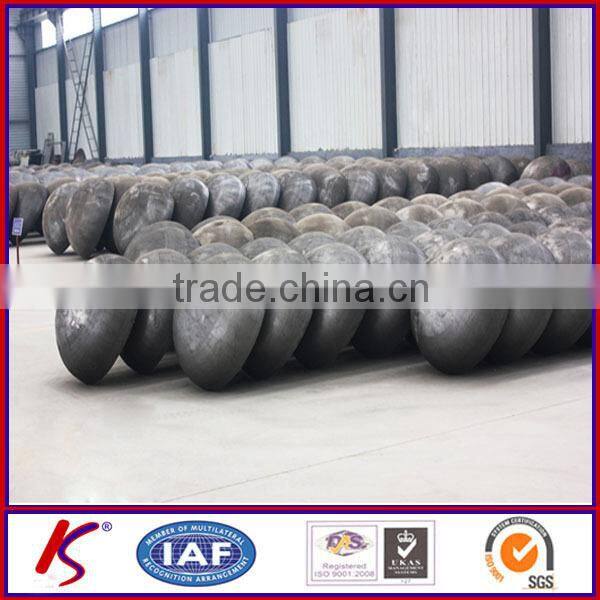

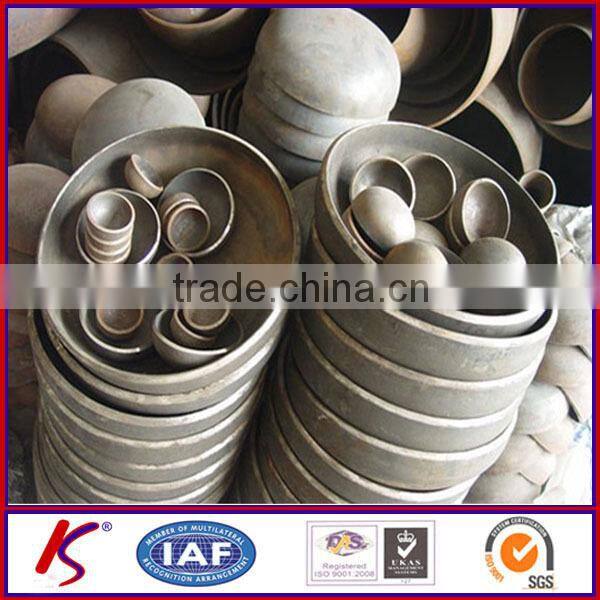

Photo of pipe end cap/metal screw cap
Function of pipe end cap
Seal head is the end cover on the pressure vessel, its one of the main pressure components. The seal head plays the role of sealing. The seal head is made into upper and bottom of the cylindrical pressure vessel. It's the end of pipe, when the pipe is not going to stretch forward, then the seal head is used to seal up the pipe in the form of welding.
Detailed Description of pipe end cap
Product | seal head,seal head pipe cap,pipe cap |
Size | 1/2"∼72" |
Material | Carbon stee(A3,20#,Q235,Q345B,16Mn) Alloy steel(15Mo3 15CrMoV 35CrMoV 45CrMo ) Stainless steel (304,321,304L,316,316L) |
Type | Rainbow (180°) |
Wall thickness | sch20;sch30;sch40,STD,schSGP.sch80,sch160 |
Standard | ANSI,ASME,DIN,JIS,BS,GB |
Application | Storage tank, heat exchanger, tower, reaction kettle, boiler and separation equipment |
Packing | Wooden case;wooden pallet |
Our service | OEM,ODM available. |
Combined shipment with other items is ok. |
About us
What we can do for you?
*Standard or customized products available.
*International standard: ANSI,ANSI,EN,DIN,SABS1123,JIS,UNI,GOST ect
*Produce as your drawing.
*With your logo on our product.
*Professioanl design teamworker and experienced engineers.
*Cover all procedures from production,inspection,packing,logistics,after sale service.,etc.
*Quick response within 24hours to your inquiries about products.
Introduction of our company
Our company: Manufacturer,Exporter
Established in:2003
Location:Wuxi,Jiangsu
Address:Shiliu Road, Hongxiang, Hudai, Binhu, Wuxi, 214161, Jiangsu, China
Employees:50~100persons
Product range: flanges,tube sheet/baffle/support plate, finned tube,studded tube,seal head,gasket, pipe fitting,fire arrestor,etc
Contact us
Skype: yinsu.shine
Email:syx9813 (at )163 dot com / yinsu.shine (at )facebook dot com
Tel: 86-510-85871033
Fax:86-510-85871386
Office:Rm.2216,Wanda Plaza,Liangxi Rd,Binhu District ,Wuxi
Factory: Shiliu Road, Hongxiang, Hudai, Binhu, Wuxi, 214161, Jiangsu, China
