Heavy Welded Wire Mesh Production Line

 Automatic Pneuamatic Reinforcing wire Mesh welding Machine

Commonly used type designation: Steel mesh machine, mesh welding machine, welding machine, guardrail row reinforcing mesh welding machine, coal mine supporting steel mesh welding machine, construction steel mesh welding machine, steel bridge, mesh welding machine, etc
The main structure: steel frame
Power mode: pneumatic machinery
The straight wire feeding materials form: the warp and weft yarn straight wire feeding
Model features: CNC set mesh, stepping servo motor, servo motor weft leakage, to adapt to the big wire mesh mesh machine

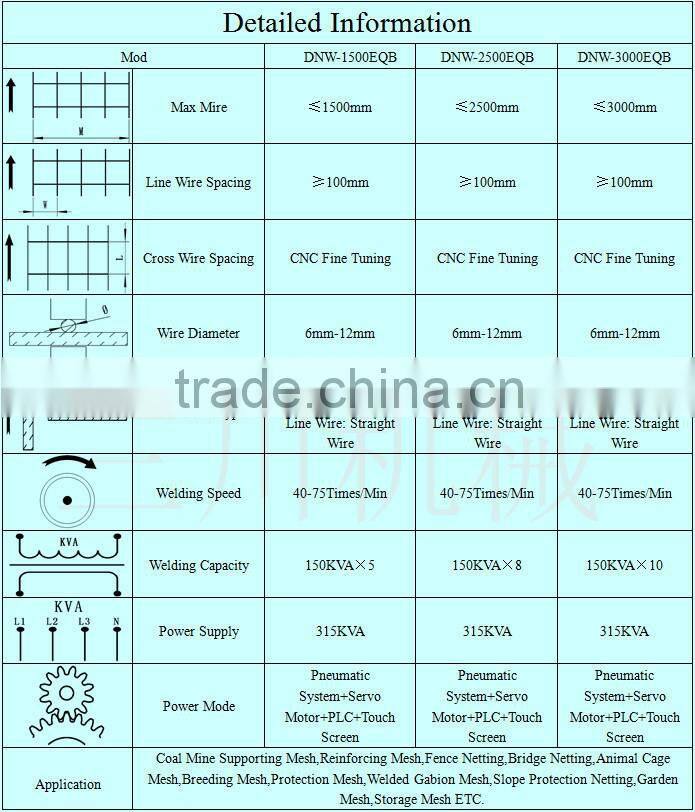

φ4mm,φ6mm,φ10mm,φ12mm
To adapt to the wire diameter
10mm,150mm,200mm,250mm
To adapt to the mesh:1500mm,1800mm,2000mm,2500mm
To adapt to the width
Applicable products: steel fabric, pet cage nets, aquaculture nets, coal mine supporting net, garden fence, stone cage net, net, mesh, fence netting, construction mesh, storage network, crafts, etc
Models of choose for buy: the wire diameter, mesh, mesh width for commonly used models, this model is applicable to production for more than 50 mm mesh, wire diameter for 4-12 mm width 1000 mm, 1200 mm and 1500 mm, 1800 mm and 2000 mm, 2500 mm and 3000 mm (according to the net width the width of the selected models) volume mesh products. if there are differents of the specifications of the network, please in model is produced to provide screen of choose and buy wire diameter, mesh, mesh width can be models of choose and buy and tailored for the user
