Long Range Uhf Rfid Card Module for Fixed Reader

Features

√ Excellent

Max Impinj R2000 RFID performance 1-10m reading

 √  Advanced

 Full self-intellectual property

 √  Humanist

 Standard interface for easy development

 √  Wide use

 Best choice for high end RFID handheld reader

 √  All-in-one

 Different standard for different countries

 √  Almighty

 Apply to kinds of data collection device demands

Specification

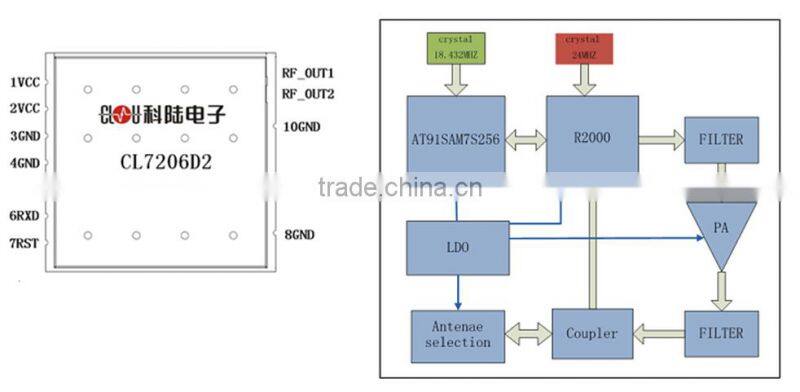

Model No.

CL7206D2

Protocol:

ISO/IEC18000-6B,6C / EPC C1Gen2

Frequency:

USA:902 MHz-928MHz (FCC part 15)

EU:865-868MHz(ETSI EN 302208)

CHN:920-925MHz

Output Power:

15dBm-30dBm(±1dBm) adjustable

Power adjustment:

1dBm step-by-step

Channel bandwidth:

<200KHz

Frequency stability:

≤±10ppm

Antenna interface:

2 port available

Output VSWR

≤1.3:1 (depending on antennas )

Interface:

RS-232(TTL)

Work Mode:

Fixed/hop frequency optional

Communication speed

10m/100m self-adaptable

Reading speed

>400times/S

Anti-collision

Excellent ant-collision algorithm,
support intensive multi-tag reading

Software

Support RSSI ,antenna detection, data filtering

Testing condition:

connected 8dBi liner polarization antenna,-18dBm

Reading Distance:

0-10m (depending on antennas and application environment)

Writing Distance:

0-4m (depending on environment)

Working Temperature:

-20 - +70°C

Related humidity:

10%-95%

Values

For system integrator:

Original manufacturer long term support

 Meet your high-end clients project demands

 Most cost-efficient/one stop solution

ODM/OEM supportable

For end user:

Promote 70% inventory speed

Save 45% processing cost

Avoid 30% articles unused/waste/Stealing

 Big data push keeping improvement

For RFID partner:

Semi-finished modules product available directly

Share Market

 Save 80% R&D cost

 Save 70% new products arrival time

Why CLOU IOT

 √ History

Group 1996-2015, 3000 employees

 √  Stock code

 SZ002121 from 2007

 √  R&D team

 More than 700

 √  Production

 Self-owned 8 production lines

 √ International

 More than 100countries

 √  RFID

 Started from 2003, 36 patents

 √ Certificates

 ISO9001/14001
