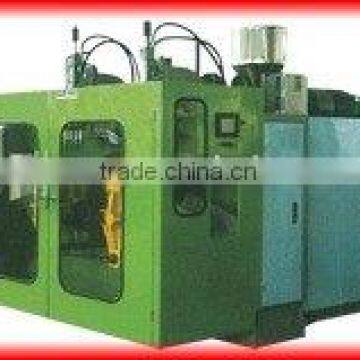

blow moulding machine
- Shanghai
- T/T
You May Like
-
blowing molding machine
-
2013 1.5L/3L Plastic bottle blow moulding machine in zhangjiagang
-
Full-auto multilayer extruding blow moulding machines 20L(max)
-
2013 Blow Molding Machinery in zhangjagang china
-
PP bottle blow moulding machine (1.5L-1.8L)
-
HDPE milk bottle/ shampoo bottle/ cosmetic bottle blow molding machine, automatic blow moulding machine
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | Longhua | Model Number | LHB65D | |
| Certification | CE |
Product Description
Specifications
*blow moulding machine1)capacity:5L
2)output:360-2880bph
3)material: PP,PE
4)application:oil,shampoo,milk bottle
blow moulding machine
This automatic hollow Blow molding machines are primarily applicable to the tanks, barrels and all kinds of single or double layer hollow blow molding products , which are made from materials, such as PVC, PE, PP etc
.Technical parameter as following:
Machine Model |
| unit | LHB65D |
Max.Product Capacity |
| L | 5 |
Extruding System | Screw Diameter | mm | 65 |
Screw L/D Ratio |
| 24 | |
Extruding Power | Kw | 18.5 | |
No.of Heaters |
| 3 | |
Screw Heating Power | Kw | 11.1 | |
HDPE Plasticising Capapcity | Kg/Hr | 56 | |
Single Die Head | Max.Die-pin Diameter | mm | 135 |
Number of Heating Zone |
| 2 | |
Heating Power of Die Head | Kw | 4.4 | |
Double Die Head | Center Distance of Die Head | mm | 160 |
Max.Die-pin Diameter | mm | 70 | |
Number of Heating Zone |
| 3 | |
Heating Power of Die Head | Kw | 6.4 | |
Tri-die Head | Center Distance of Die Head | mm | 110 |
Max.Die-pin Diameter | mm | 55 | |
Number of Heating Zone |
| 4 | |
Heating Power of Die Head | Kw | 6.5 | |
Tetra-die Head | Center Distance of Die Head | mm | 85 |
Max.Die-pin Diameter | mm | 30 | |
Number of Heating Zone |
| 5 | |
Heating Power of Die Head | Kw | 6.5 | |
Clamping System | Clamping Force | KN | 57 |
Platen Size | mm | 290*360 | |
Platen Opening Stroke | mm | 150-500 | |
Max.Mould Size | mm | 350*361 | |
Mould Thickness | mm | 155-300 | |
Power | Total Power | Kw | 42.5 |
Average Power consumption | Kw | 26 | |
Air Pressure | bar | 0.6 | |
Air consumption | m3/min | 0.4/0.8 | |
Cooling Water Pressure | bar | 3 | |
Cooling Water Consumption | m3/Hr | 3/6 | |
Machine dimension | m | 3.4*2.2*2.5 | |
Machine Weight | T | 3.7 | |
