Oil and water leak detecting and warning detector sensor for fuel station double skin/wall tank

   Fuel leak detector

Product Introduction

Double-deck Tank Leakage Detecting Instrument consist of GH-SLI Console and SYW-E Sensor. It can make a distinction between water and oil,  enjoys real - time monitoring function.

This instrument designed for detecting water and oil between the two layers of double-deck tank. When there are lakegae between the two layer of tank, the SYW-E Sensor will detetect it and give singal to GH-SLI Console, the console will giving an audible and visual alarm through software calculation.

Users can take measures to deal with the leakage according the alarm, to avoid the safety hidden trouble and environmental pollution.

The leakage detecting instrument complete with switch output signal, can realize interlocking control after connect with other equipments.

Technical Parameters

Power Supply: 220VAC

Explosion-proof grade: ExiaIIBT4

Alarm method: audible and visual alarm

Sensor size: according to the length of the tank

Temperature: -40℃~+70℃

Environment humidity: <85%

Accuracy: <3mm

Response time: <2s

Pressure range: 80Kpa~110Kpa

Output mode: switch output

GH-SLI Console size: 300*180*113mm

Blind size: DN50/80/100

Product Features

Safety: Explosion-proof gradeis ExiaIIBT4 issued by PCEC. The sensor structure is 304 stainless.

Sensitive: the instrutment detect accuracy <3mm, response time <2s

Stability: frequency variation of piezoelectric transducer belong to physical attribute, without structure, light and other factors interference. It can adapt to the complex environment, and with great anti - interference performance.

Intelligent trouble diagnosis: alarm lamp will flash when anything goes wrong with sensor. Users can inform factory alarm lamp status so that technicians judge the faults and repair it.

Intelligent oil/water diagnosis: detecting water and oil between the two layers of double-deck tank,when there are lakegae between the two layer of tank, the SYW-E Sensor will detetect it.

Simple Installation:485 protocol bus standard, easy for installation. Can share the same wire with level meter.

Reserve switch output port, can realize interlocking control after connect with other equipments.

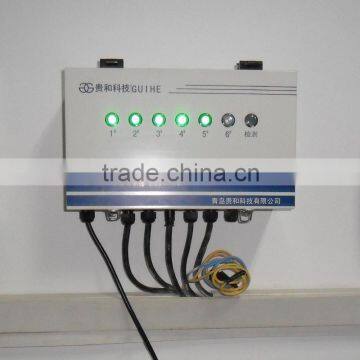

Using picture

Normal state: power lamp flash, alarm lamp not light, buzzer not ring

Alarm state: power lamp not light, alarm lamp flash, buzzer ring

Trouble state: power lamp flash, alarm lamp flash, buzzer ring
