Home > Products > Silica brick > Hot Blast or Coke Oven Glass Melting Furnaces
Hot Blast or Coke Oven Glass Melting Furnaces
- 5000 Ton / Tons per Month
- Tianjin Port
- T/T Credit Card
You May Like
Product Details
Place of Origin | Henan, China | |||
Material | Other, Silica | SiO2 Content (%) | 96 | |
Al2O3 Content (%) | 0.7 | |||
CaO Content (%) | 0.5 | |||
Model Number | BG-96A | Brand Name | SUNRISE |
Product Description

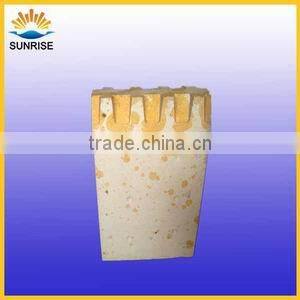

Hot Blast or Coke Oven Glass Melting Furnaces

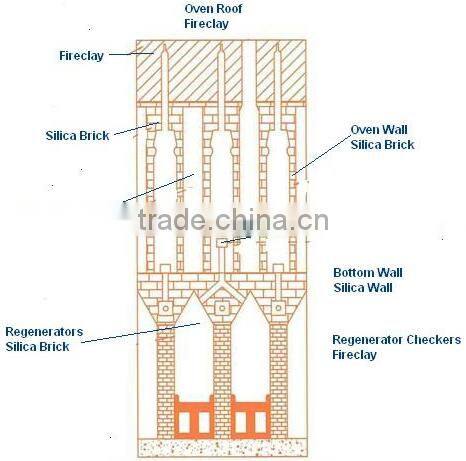

Silica brick is a kind of acid refractory mainly made from tridymite, cristobalite and a small amount of residual quartz as well as glass phase. The raw material is natural silica sand whose SiO2 content should be more than 96%. The higher SiO2 content in silica sand, the higher temperature silica bricks resist. Silica bricks are used in the roof and superstructure of glass melting tanks as well as for hot repairs.
Casting Types
Physical properties and chemical composition
Item | BG-96A | |
Chemical composition | SiO2 | ≥96 |
Fe2O3 | ≤0.8 | |
Al2O3+TiO2+R2O | ≤0.5 | |
Refractoriness ℃ | 1710 | |
Apparent Porosity% | ≤21 | |
Bulk Density g/cm3 | ≥1.8 | |
True Density g/cm3 | ≤2.34 | |
Cold Crushing Strength Mpa | ≥35 | |
0.2Mpa Refractoriness Under Load T0.6 ℃ | ≥1680 | |
Permanent Linear Change On Reheating (%)1500℃X2h | 0~+0.3 | |
20-1000℃ Thermal Expansich10-6/℃ | 1.25 | |
Thermal Conductivity (W/MK) 1000℃ | 1.44 |
Cooperation Mode
Sunrise Refractory can offer the customer excellent service relating to the production line of the float glass, which includes the design and advisory of the furnace and the tin bath, the matching of the materials and its construction. The products made by our company have been use in more than 80 production lines of float glass and production line of glass products both at home and abroad.
Sunrise Refractory had engaged in the production of various fused cast AZS, such as fused cast AZS 1681, fused cast AZS ER 1685,fused cast AZS 1711, glass furnace fireclay bottom block, mullite brick, zircon brick, alumina bubble brick, sillimanite brick, corundum brick, low porosity fireclay brick, high alumina brick, all kinds of glass furnace ramming masses, sealing materials, building fireclay, etc.
1. We are interested in your products, please give the details to me.
Firstly we want to introduce our company--We are a professional manufacturer of refractory bricks mainly used in glass and steel industry. Products include Fused Cast AZS, fused cast α-β -alumina, β-alumina, α-alumina, glass mould brick, mullite brick, silimanite brick, fireclay brick, high alumina brick, insulation brick, magnesia bricks,fiber ceramic board/blanket and many other special refractories.
Please be kindly note use the size, quantity, purpose you required, so we can recommed you the most applicable products.
2. What's the color of your products?
Different bricks are featuring with different colors, fused cast AZS are mostly white.
3. How long is the service life of fused cast blocks?
Generally the service life is affliated with usage methods, operation frequency, etc.
4. Would you please send us some samples?
Sunrise can provide 100*100*50 samples for free. However, the frieght should be born by you.
Sunrise Refractory Products are widely exported to American, British, Europe, South Ameria, Middle East, South Asia, etc.
