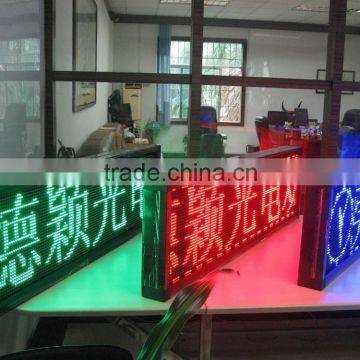

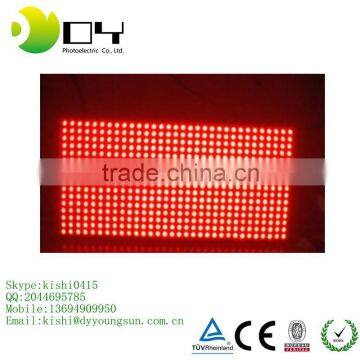

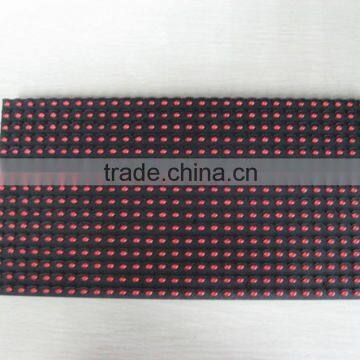

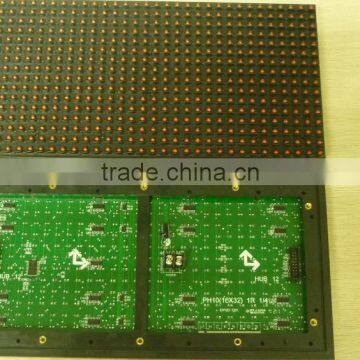

Full color P10 outdoor red led module on sale

The technical parameter of P10 Display Module
Number	Item	P10 Single Red Module
1	Pixel pitch	10mm
2	Size of module(wxh)	320mm X160 mm
3	Resolution of module (wxh)	32 dots X16 dots
4	Density of pixel	10000dots/m²
5	Pixel configuration	1R or 1G or 1B or 1W
6	Red wavelength	625±2nm
7	Green wavelength	525±2nm
8	Blue wavelength	470±2nm
9	Colors	Red
10	Best viewing distance	10-100m
11	Horizontal viewing angle	120°
12	power consumption	200w/m²
13	Brightness	>2500cd /m2
14	Gray scale	16bits per color
15	Color temperature	5500k
16	Control method	Synchronization & Asynchronization
17	Driving method	1/4 scanning
18	Frame frequency	60Hz
19	Refresh frequency	>300Hz
20	Working voltage	AC220V/110V±10%
21	IP grade	IP65
22	Working temperature	-20°C~80°C
23	MTBF	>10000 hours
24	Lifespan	>100,000 hours
25	Defects rate	≤0.00001(Led display line standard<0.0001)

P10 module series:
