Home > Products > LED display screen > DIP P10 Outdoor Full Color LED Display Module With CE, FCC, ROSH 160*160
DIP P10 Outdoor Full Color LED Display Module With CE, FCC, ROSH 160*160
Negotiable
1 (Min. Order)
You May Like
-
Full Color P10 Outdoor Red Led Module on Sale
-
Hot Products High Brightness Waterproof P10 Led Module Red
-
P3 Indoor & Rental & Outdoor Usage Advertising LED Boards Dot Matrix Programmable Sign Message Board Vehicle Led Module
-
Outdoor P10 2 in 1 Dual Color Module Led P10
-
Good Price Led Display Screen Outdoor P10 Dot Matrix Led Module
-
High Brightness Big View Angle 3500mcd DY P10-1R Outdoor Led Display Module
Product Details
| Model Number | DY-P10 | Chip Material | InGaN | |
| Emitting Color | Tri-Color(Red-Blue-Green) | Luminous Intensity | ≥6500cd/ m2 | |
| Power | Other | Operating Temperature(℃) | -20, 50 | |
| Storage Temperature(℃) | -35, 85 | Place of Origin | Guangdong, China | |
| Brand Name | DY | Certification | CE |
Product Description

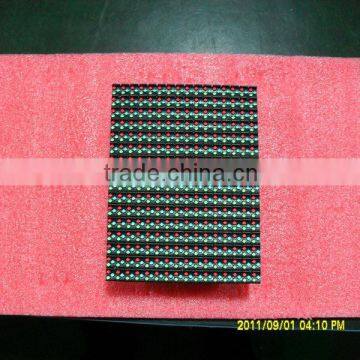

DIP P10 outdoor full color LED display module with CE, FCC, ROSH 160*160
| The technical parameter of P10 Display Module | ||
| Number | Item | P10 RGB Module |
| 1 | Pixel pitch | 10mm |
| 2 | Size of module(wxh) | 320mm X160 mm,160*160mm |
| 3 | Resolution of module (wxh) | 32 dots X16 dots |
| 4 | Density of pixel | 10000dots/m² |
| 5 | Pixel configuration | 1R or 1G or 1B or 1W |
| 6 | Red wavelength | 625±2nm |
| 7 | Green wavelength | 525±2nm |
| 8 | Blue wavelength | 470±2nm |
| 9 | Colors | Red |
| 10 | Best viewing distance | 10-100m |
| 11 | Horizontal viewing angle | 120° |
| 12 | power consumption | 200w/m² |
| 13 | Brightness | >2500cd /m2 |
| 14 | Gray scale | 16bits per color |
| 15 | Color temperature | 5500k |
| 16 | Control method | Synchronization & Asynchronization |
| 17 | Driving method | 1/4 scanning |
| 18 | Frame frequency | 60Hz |
| 19 | Refresh frequency | >300Hz |
| 20 | Working voltage | AC220V/110V±10% |
| 21 | IP grade | IP65 |
| 22 | Working temperature | -20°C~80°C |
| 23 | MTBF | >10000 hours |
| 24 | Lifespan | >100,000 hours |
| 25 | Defects rate | ≤0.00001(Led display line standard<0.0001) |
P10 module series:
| Red wavelength | 625±2nm | size(mm)320*160 |
| Green wavelength | 525±2nm | size(mm)320*160 |
| Blue wavelength | 470±2nm | size(mm)320*160 |
WEBSITE FOR YOU : http://www.dyyoungsun.en.china.cn/ WELCOME TO PLACE AN ORDER.
Contact Us
- Dongguan Deying Photoelectric Co., Ltd.
- Contact nameAngel Li Chat Now
- Phone86-769-86596868
- AddressNo.1 Road,Chikan Industrial Area,Shipai Town,Dongguan City,Guangdong Province,China, Dongguan, Guangdong
