P10 Outdoor Single Color Led Display Module,outdoor LED Display Red Green White
- ShenZhen
- T/T Credit Card
You May Like
-
P10 1R 320x160 Led Display Module
-
Express Semioutdoor/indoor/outdoor P10 Single Red Color Led Display Module
-
2016 Hot Product 32*16 Red P10 LED Electronic Display Module Quality Choice
-
Express Outdoor Waterproof Advertising Display Outdoor Led Display P10 Outdoor Single Color Led Display Module
-
Led Screen Module P10
-
P10 Led Screen Module Display Outdoor
Product Details
| Place of Origin | Guangdong, China | Brand Name | p10 | |
| Model Number | P10r module, p10 led module | Usage | Other, Outdoor, Outdoor | |
| Tube Chip Color | Other, Red, Red | Display Function | Graphics | |
| Pixels | 10mm | Screen Dimension | 320mm*160mm |
Product Description

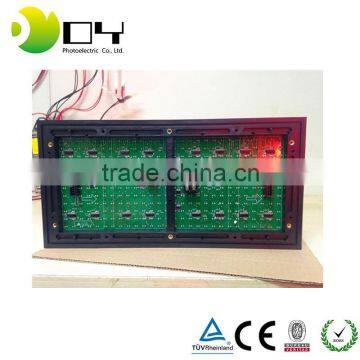

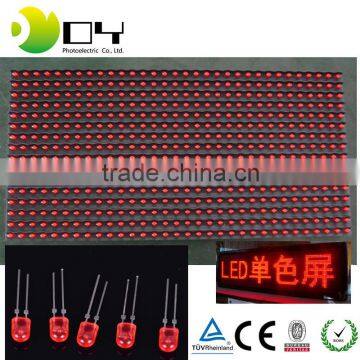

P10 outdoor single color led display module,outdoor LED display red green white
Specification
1) Outdoor advertising red led display board
2) CE&ROHS certificate
3) stability
4) low power consume
Culture
Technical Parameters
1. Module
Description | Technical parameter | |
Unit module | Module size | 320*160mm |
Pixel pitch | 10mm | |
Pixel density | 10000dots/m2 | |
Pixel configuration | 1R | |
Led specification | 546 | |
Pixel resolution | W:32dots*H:16dots | |
Cabinet | Dimension | 960mm*960mm*150mm |
Quantities of module | 18pcs | |
Power supply | 4pcs | |
Thermal discharge | Fan*2pcs | |
Total weight | 50kg | |
Best viewing angle | 10-300m | |
Temperature | Storage: -35°C~+85°C | |
Working: -35°C~+85°C | ||
Thickness | 15cm can adjustable | |
Remarks: cabinet size can changed, upon project need. | ||
Power | Working voltage | AC220V/110V±10% |
Average power consumption | 100-150W | |
Max. Power consumption | ≤200-300W/sqm | |
Current | ≤20mA(single LED) | |
Control system | CPU | Pentium4 or above |
Operating system | WIN98/2000/NT/XP | |
Control method | Synchronization | |
Main technical parameter | Driving device | 1/4 scanning |
Drive type | Constant Current driver IC | |
Refresh frequency | ≥600Hz | |
Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color | |
Brightness of white balance | More than 2500cd/sqm | |
Brightness adjustment | 256 levels of each color(R/G/B)by software | |
Operating ambient humidity | 10%--65% | |
Video signal | PAL/NTSC | |
Control system | DVI display card+full color controller card | |
MTBF | ≥10,000hours | |
Life span | ≥100,000hours | |
Flatness | Tolerance of interpixel ≤0.3mm | |
Tolerance of modules clearance≤0.6mm | ||
Power switch | Automatic switch | |
Display mode | 1024*768 | |
Communication distance | Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10KM | |
Software | LED media player | |
