INOCO bag filter stainless steel water filter water treatment machine Supplier's Choice

1,INOCO Multi bag filter stainless steel filter housing

Description >>

INOCO multi-bag filter housing features a cost effective, handwheel operated, davit cover. Loosen the swing bolts, turn the davit handwheel and swing the cover aside.
Standard GB150 ,”CS ” or ASME.
Tapered, electro-polished stainless steel perforated baskets.
Unique 3-point hold-down ensure high quality of seal between each filter bag and housing body. Simple design ,ensures simple, effective operation.
Rugged, simple handwheel-operated davit cover makes the HD perfect for cost sensitive applications.
Hydraulic-assist davit cover is available as an option.
Positive O-ring sealing provides easy, reliable operation.
Available PP,rubber ,PTFE etc. lining ,carbon steel and 304,316L stainless steel for high corrosion resistance.
standard sizes with 2 through to 24 bag housings are available for size 02 filter bags.

Features >>

Hand wheel operated davit cover
Positive bag hold downs
Up to 24 bags per housing
Positive O ring seal

Benefits >>

Rugged, reliable and very cost effective.
Perfect bag to housing sealing for no by-pass
Can handle very high flow rate / high dirt load applications
No external leakage

2,INOCO Multi bag filter Specification

3, INOCO Multi bag filter Application

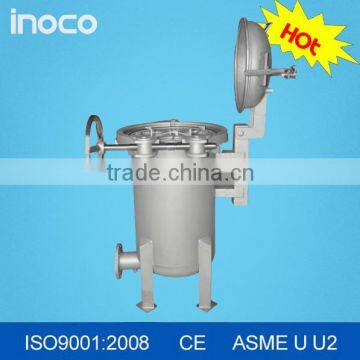

4,INOCO single bag filter housing

Description >>

Bag filter is often characteristic of high flow rate and long service life. It consists of stainless steel housing, bag holder and filters.

The bag filter housing is made of SS304 or 316L. With different sizes, it is capable of holding 1 to 8 bags. The opening can be flange type or screw type.

Bags filter housing with capacities of up to 24 bags.

The cover flange adopt handwheel  and swing bolts ,open and close easily ,fast bag changeouts.

Positive o-ring sealing offers easy and safe operation.

Liquid bag Filter effectively removes dirt,pipe scale,and other contaminants from process liquids such as water, beverage,chemical and petroleum products. Bag filter can be used with the standard #1,#2,#3,#4 size bags or the standard perforated basket as a strainer. Mesh lined baskets are also available as an optional feature effective filtering area is rather big,achieving more efficient filtering result.Eye Bolt Closure System.The user friendly,cost effective bag filter housing for high volume,multiple applications and processes. The Max. flow of single unit are from 90 Cubic m/h to 1080 cubic m/h.

Model selection >>

5,INOCO single bag filter housing  Specification

SGD-I series Clamp single bag filter >>

Clamp single bag filter is suitable for low pessure condition, which is an economic choice.

SGD- II series Side-in single bag filter >>

Side-in single bag filter is the standard type filter of Inoco, with easy open type, which is commenly used in filtration field.

SGD-IN Top-in single bag filter >>

Top-in single bag filter has a very perfect sealing effect, the filter vessel is fully used by filtered liquid.

6, INOCO single bag filter housing  product show

7, Inoco company capacity

Inoco provide a wide range of filter and filter system for water filtration, oil production, processing; mining processing, liquefaction, transportation in natural gas industry around the world,used to remove pollutants in liquid or gas. With 18000 companies service experience in worldwide, leading filter laboratory, strong manufacturing capacity, we can provide you with excellent reliability and high performance products.
Inoco all gas filtration and separation products are available with ASME "U" seal "U2", we can also accept BureauVeritas, TUV third-party certification.

8, Related products

1. MULTI BAG FILTER
2. CARTRIDGE FILTER
3. AIR FILTER
4. AUTOMATIC SELF CLEANING FILTER
5. BACK WASH FILTER
6. PIPELINE FILTER
7. BASKET FILTER
8. Y STRAINER
9. DUPLEX BAG FILTER
10. FILTER BAG

For more details pls contact Inoco sales team.
