Home > Products > Test Probes,Fingers and Pins > Test Rod Probe From IEC61032
Test Rod Probe From IEC61032
- Shenzhen
 - T/T Credit Card PayPal

You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | AUTOSTRONG | |
| Model Number | AUTO-32 | Power | Other, physical | |
| Usage | Other, access probes |
Aluminum box or can be customized
Product Description

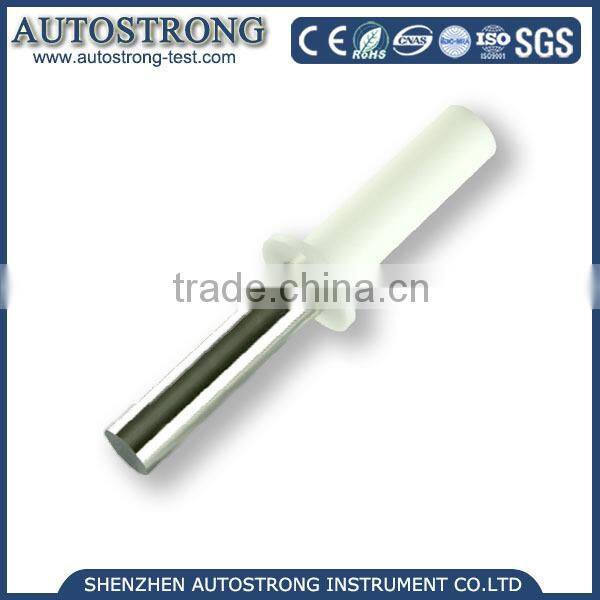

Test Rod Probe from IEC61032 (#31 fig. 14)
AUTO-32
Standards:
This test probe is designed according to the standard of IEC61032 figure-15.
Application:
This Probe is intended to verify the protection against access to hazardous mechanical parts of the grinding system of food waste disposal units.
Technical paremeters:
| Test Rod Diameter | φ25mm |
| Rigid Finger length | 80mm |
| dam-board diameter | 60-110mm |
| Material | The handle is made of nylon, tip is made of stainless steel |

Best Service and Advantages from Autostrong:
- High qualitty ,Long life time and Competitive price
 - Instrument manufactured according to the relevant standards
 - Instrument manufactured according to the relevant standards
 - Good Service after sale:professional R&D and technical team 24hours support,Manufacturer--can make OEM & ODM order,and also can provide overall laboratory solutions,and good service.
 - Strict quality control,more than 24hours befroe shipping and with 1year warranty
 - Short leadtime and fast delivery
 - With CE,ROHs,SGS and ISO certificates

We could provide various test probes according to IEC61032, IEC60335, IEC60065, IEC60529, IEC60745,IEC60884,UL1244,UL507,UL1278,UL60950,UL1026 etc. standards and also customized non-standard products.
Such standards require the checking of accessibility to dangerous parts of home electronics and appliances,toys,tools and a hose of other products thar are intended to be protected by enclosures.
These probes simulate human fingers,tools and other items that would be hazardous to come in contact with certain parts of produt.
Welcome to contact us for more details!

For further information, please fill it in the box below, we are always at your service!
