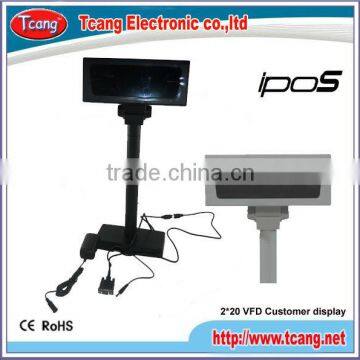

POS Customer VFD Display

             20X2 Character VFD customer pole display

Feature

• Beautiful shape
• Display Angle can be around up-down adjustment.
• Display intuitive interface
• Easy installation
• Show time while driving interface with the box

Specification:

  Communication

• Interface: Serial port (RS-232), USB port as optional
• Baud rate: 9600bps
• Parity: None
• Data bit: 8bit
• Stop bit: 1bit
• No handshake signal
• By the power of the host computer DC12 (big 4ps interface).
• Display: VFD Bright blue-green fluorescent display .
• Display characters: 2 line  x  20 characters / line, 40 characters, 5 x 7 Dots
• Character size: high 11mm x wide 7mm.
• MTBF: 25,000 hours
• Panel dimensions: 80(H) x 225(W)x37(D)  mm
• Support dimensions:

  Electrical

• By the power of the host computer DC12 (big 4ps interface).

  Display method

• Display: VFD Bright blue-green fluorescent display .
• Display characters: 2 line  x  20 characters / line, 40 characters, 5 x 7 Dots
• Character size: high 11mm x wide 7mm.
• MTBF: 25,000 hours

  Dimensions

• Panel dimensions: 80(H) x 225(W)x37(D)  mm
• Support dimensions:

       Long support: 480mm  (Contain base)

       Short support: 225mm  (Contain base)

       Base dimensions: 185(L) x95(w) x25(H) mm

• Pitching move angle: 45°, Can provide comfortable, and adjust the visual Angle.
• Weight:1.2Kg  (packing)

  Environment:

• Operating Temp:    -20~70
• Storage  Temp;     -40~80
• Operating Humidity:  10~85%
• Storage  Humidity:  10~90%

  Command Set :

• Adopting international standard general command ESC/POS, Its can used in DOS or Windows System Environment, Don't need any driver, Only according to the format serial order set to send data can show content.
• With the function of opening the cash drawer All direction adjustable.

Application:

Its used in windows charge of Marketplace, Hospital,airdrome, Station, Post, Bank etc

.
