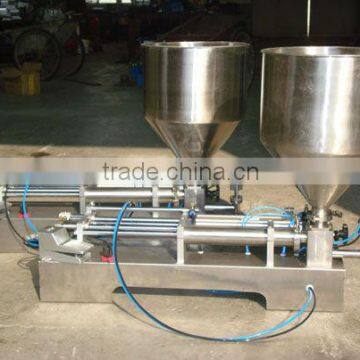

GFD Semi- automatic pedal thick cream paste filling machine
- 100 Piece / Pieces per Month
- Shanghai
You May Like
-
GFC Semi automatic viscosity liquid filling machine
-
Fully Automatic Linear gear oil filler
-
ZXG Fully Automaic Linear Lubricant oil piston filling euipment
-
ZXG Fully Automaic Linear Lubricant oil 1 gallon piston filling euipment
-
Fully Automatic Linear Liquid chemical 5 gallon filling Equipment
-
5 Gallon oil filling machine
Product Details
| Condition | New | Application | Other, ALL | |
| Packaging Type | Other, ALL | Packaging Material | Other, ALL | |
| Automatic Grade | Semi-Automatic | Driven Type | Other, ALL | |
| Place of Origin | Shanghai, China | Brand Name | Hujia | |
| Model Number | GFD |
Product Description
Specifications
1.GFD Semi- automatic pedal thick cream paste filling machine2. Pneumatic
GFD Semi- automatic pedal thick cream paste filling machine
Working Principle
The machine works on the three-way principle to adjust the filling quantity that a cylinder drives a piston and a rolling valve to draw out and output the high-thickness fluid, and then the magnetic switch controls the journey of the piston.
The machine has a simple and reasonable structure, high filling accuracy.
Equipment Introduction
This machine is used in foods, daily chemicals, agrochemicals, medicine and other special chemicals. The following factors will affect the machine while working:
1. Air pressure stability, material uniformity and filling speed will affect the filling accuracy.
2. Viscidity of materials, size of filling head and skills of manipulators will affect the filling speed.
3. This machine has two filling ways, foot and automatic, and they can be switched randomly.
4. This machine uses the extension valve for is wear-resisting, acid proof, the thermostable four fluorine material, when clean cannot at will strike, the collision.
Technology parameter
Rated air pressure | 4-6KG |
Filling speed | 0-10 bottle/min(Single Head), 0-20bottles/min(double head) according to filling volume and workers |
Filling precision | +/-1% |
Type and the filling range GFD-7 5--70ML GFD-12 12--120ML GFD-25 25--250ML GFD-50 50--500ML GFD-100 100--1000ml GFD--200 200 to 2000ml GFD--500 500 to 5000ml | |
